SKU: KS0212

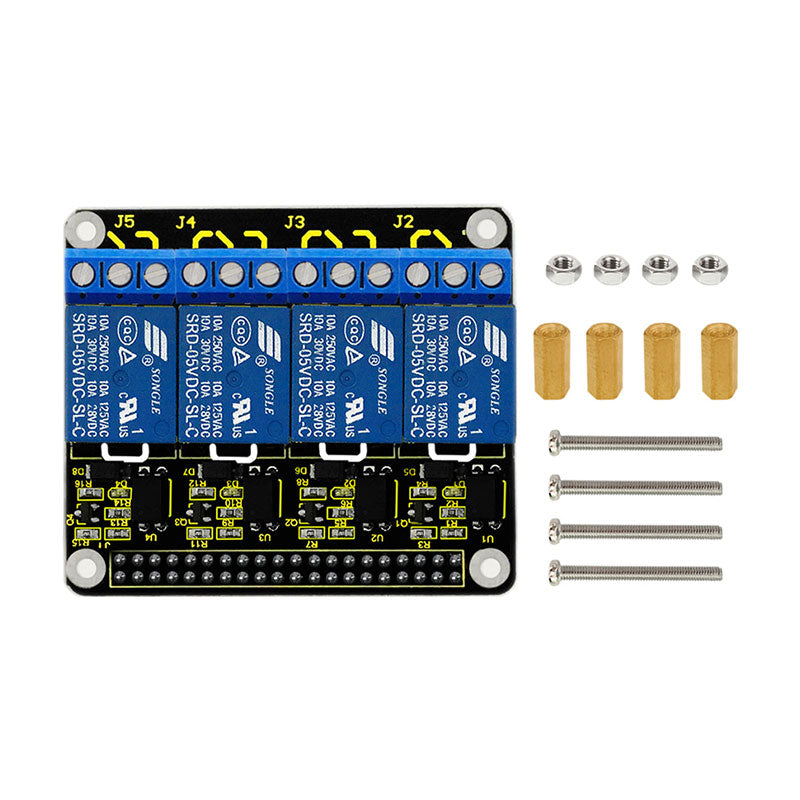

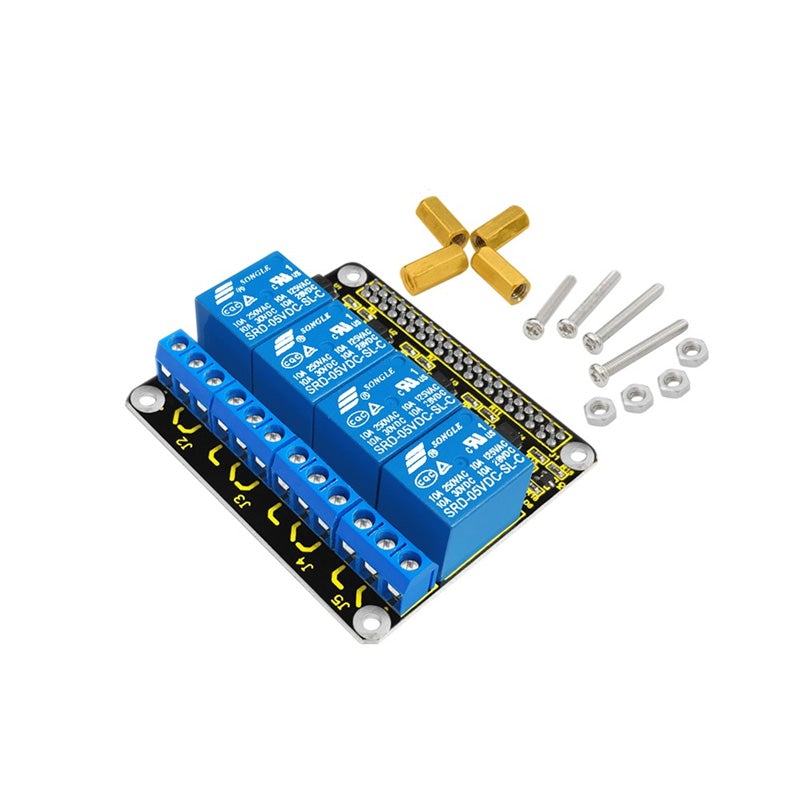

Shield Relay 4 channels Raspberry Pi Keyestudio

Regular price €9,34
Sale price €9,34 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

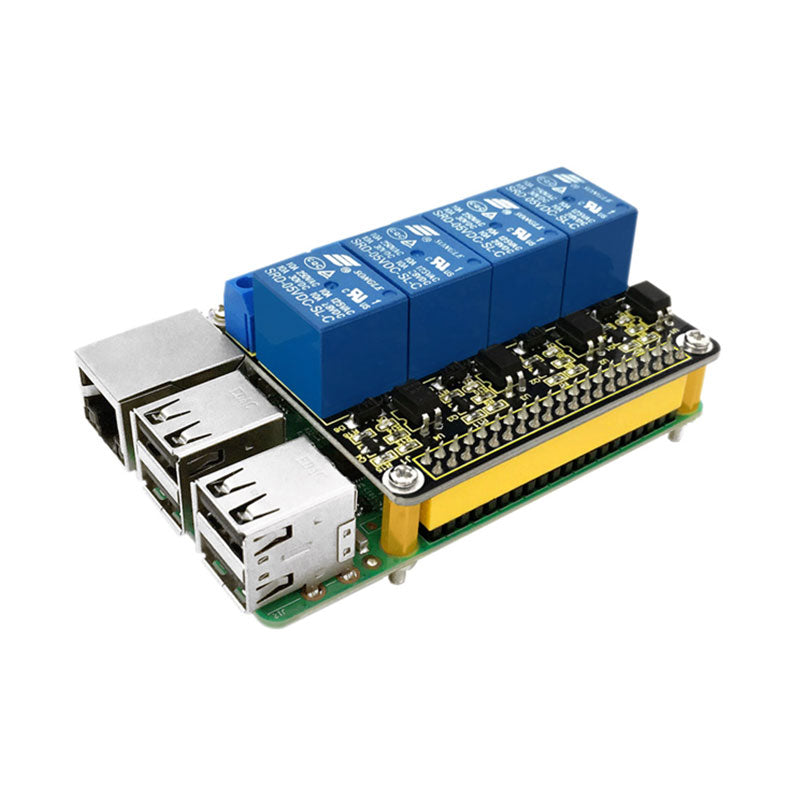

The 4-channel Relay Shield allows you to control the power of components such as lights and motors through the Raspberry Pi. Each of the relays has the capacity to control loads up to 24 V DC (Direct Current) or 250 V DC (Alternating Current). The Shield has an LED that indicates the status of the relays. It works simply by pairing it to the Raspberry Pi controller board.

Features

  • Control signal: TTL level
  • Nominal load:

10A 250VAC
10A 125VAC
10A 30VDC
10A 28VDC

  • Rated Current: 10A(NO) 5A(NC)
  • Maximum Switching Voltage: 250V AC 30V DC
  • Contact time: about 10ms

Connection diagram

📄 See Schedule
