SKU: KS0438

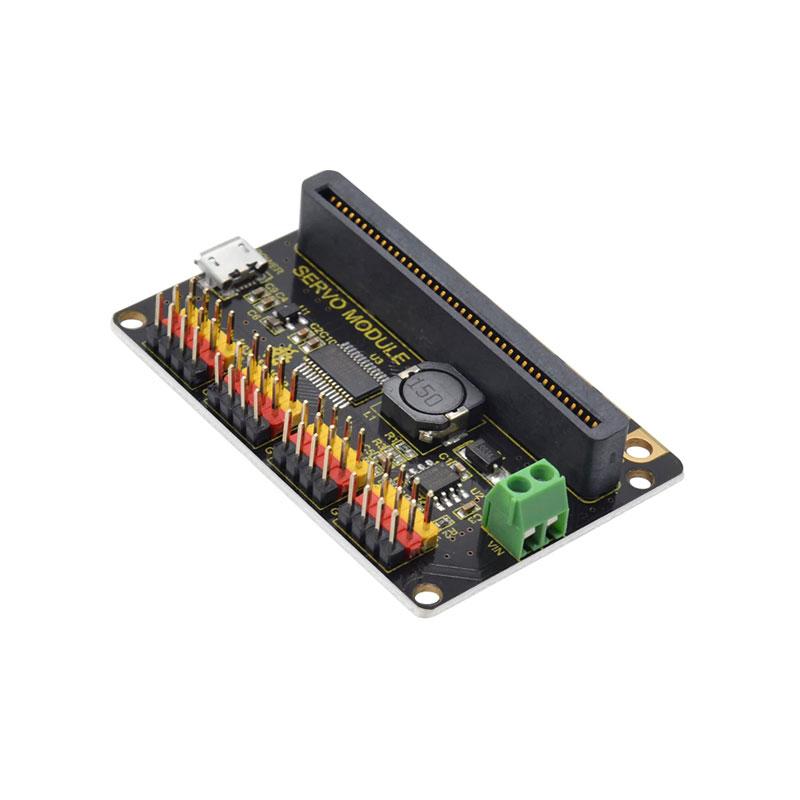

16 Channel Servo Motor Shield for Micro:bit Keyestudio

Regular price €12,30
Sale price €12,30 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

BBC Micro:bit compatible shield

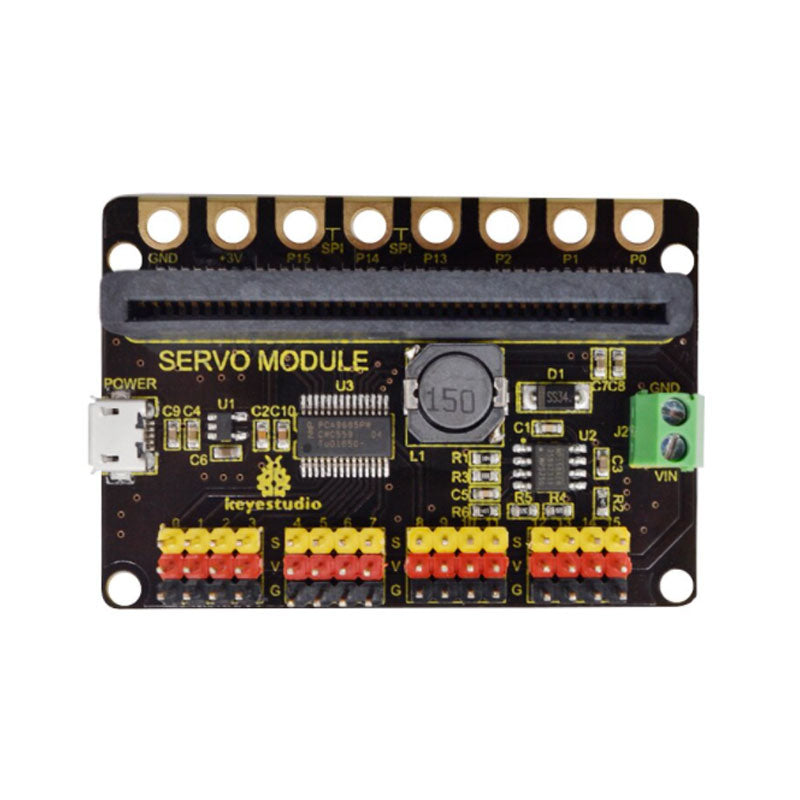

This shield mainly integrates the PCA9685PW chip which communicates with the Micro:bit controller board through I2C.

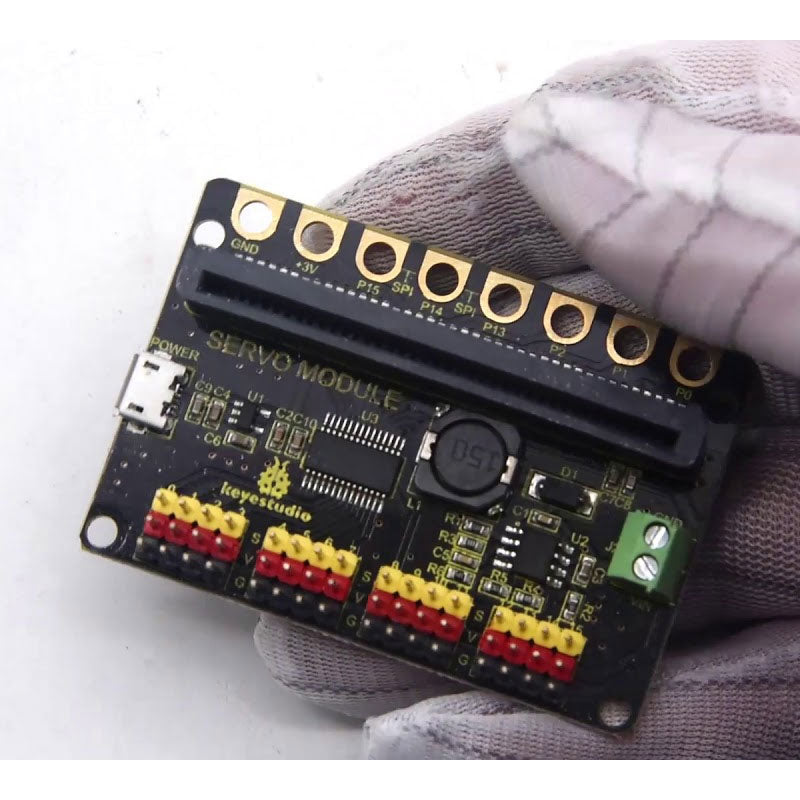

The servo shield has 16 IO pins for driving 16 servo motors. To facilitate the connection, we extended the control pin of each channel to the GVS interface - 3-pin header with a diameter of 2.54mm. The voltage of the V pin on the Servo shield is 5V.

The servo shield can be supplied with power from the Micro USB connector (DC5V input) or 2 green terminal blocks (DC 7-12V input).

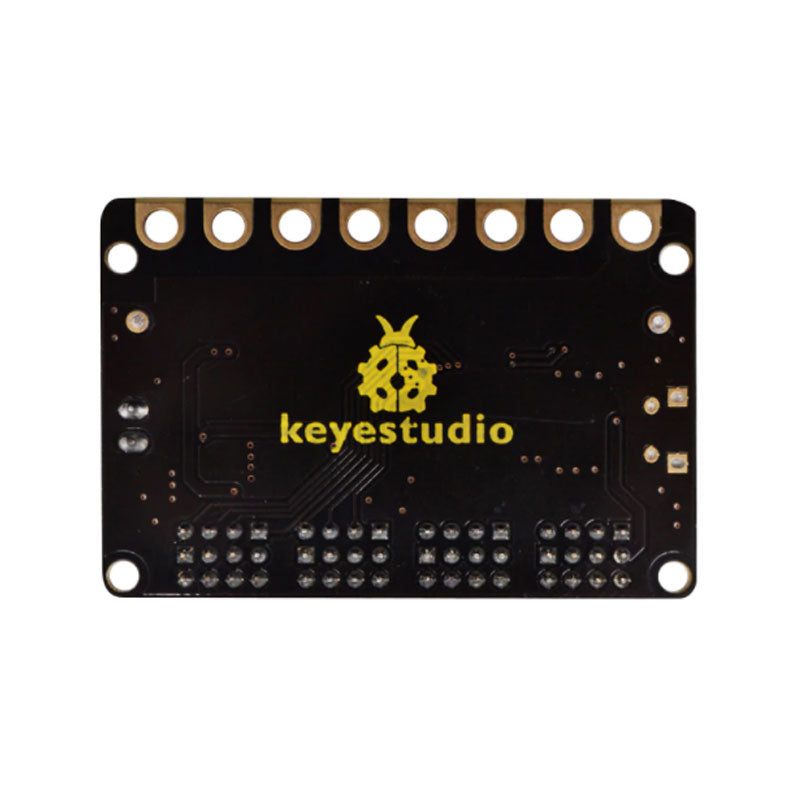

In addition, the Servo shield also features 8 gold-plated connection holes. This provides an easier way to connect additional circuits and sensors/hardware modules to the Micro:bit board's edge connection or 3.3V output pin.

Technical Specifications

I2C input, controlling 16-channel PWM output allowing to control 16 servos
Control chip: PCA9685PW
Micro USB port: DC 5V
Terminal Blocks: DC 7-12V
Frequency: 40-1000Hz
Dimensions: 63mm x 43mm x 12mm
Weight: 18.6g

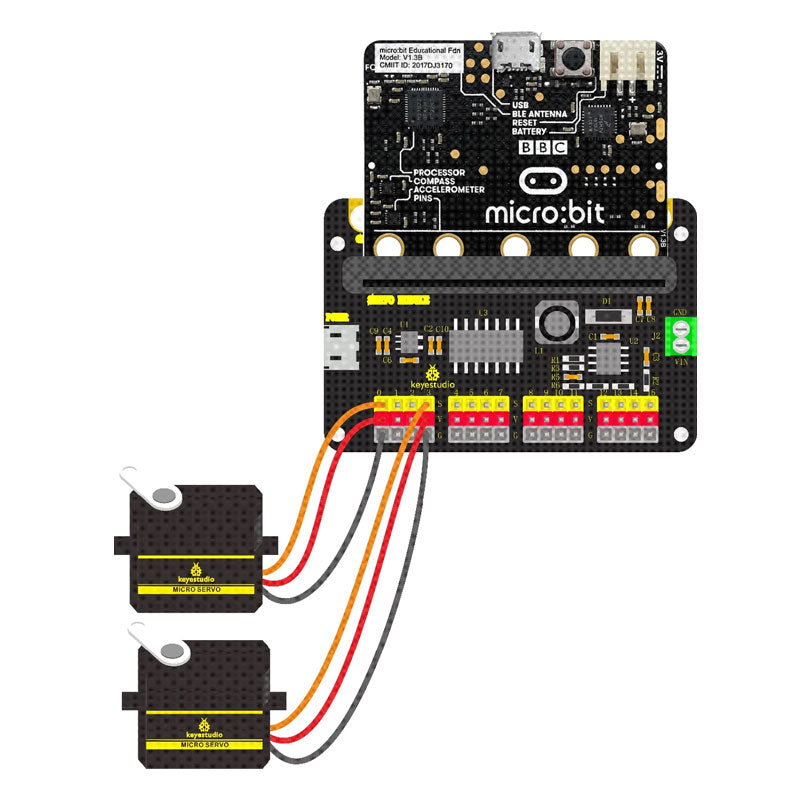

Connection diagram

Schedule

Pairs well with
