Shield Sensors V2 Micro:bit Keyestudio

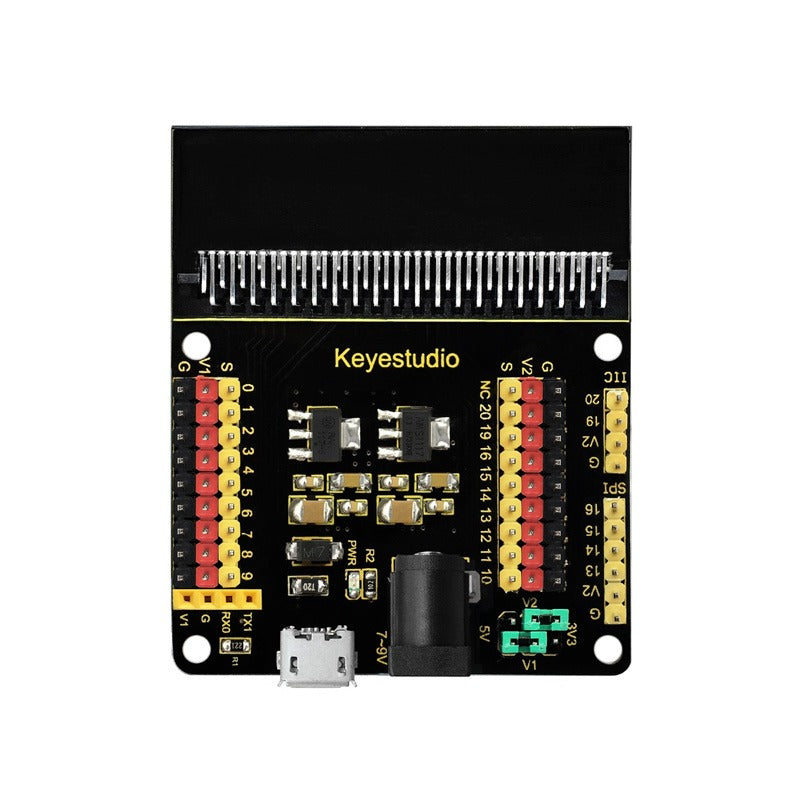

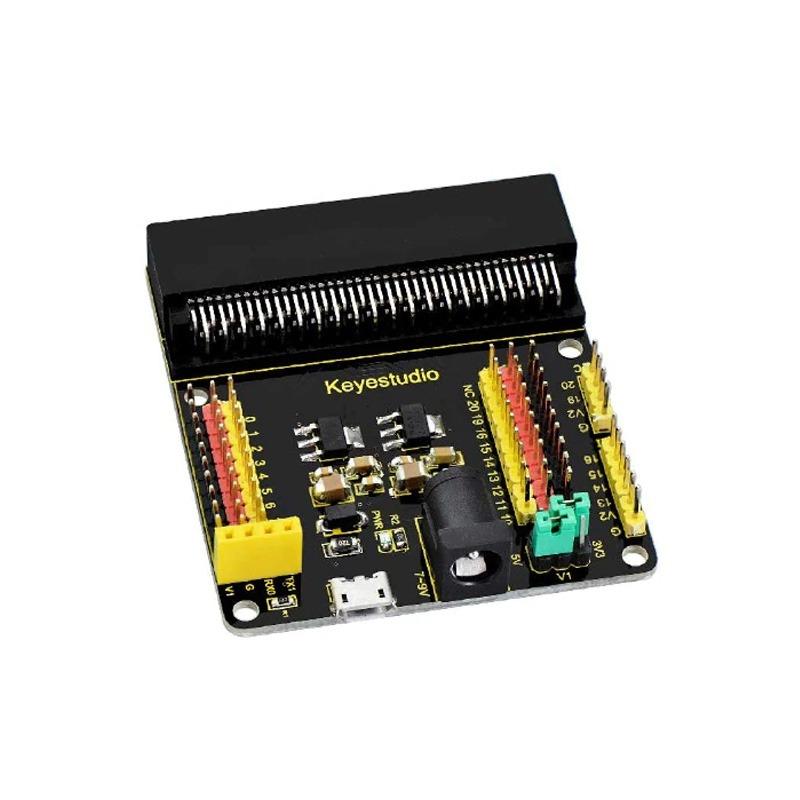

The Keyestudio Micro:bit Sensors Shield V2 is designed to expand the connection possibilities between the Micro:bit Board and other sensors. This Shield divides all the PIO ports of the Micro:bit board into 3 Pins (GND, VCC, Signal) and makes it easier to connect to the modules.

In addition, it also expands some Lighting and Serial Communication interfaces normally used on male or female pins with 2.54mm spacing, such as I2C and SPI Lighting and Communication pins. Thus, it allows Lighting and Communication between the Micro:bit board and other Lighting and Communication devices.

Technical Characteristics

Power input: black DC jack (DC 7-9V) or micro USB port (DC 5V)
Voltage output: select 3.3V or 5V via jumper cap V1/V2
Comes with a power indicator
Expands Micro:bit's PIO ports into 3 interface pins
Lighting Pin and Serial Communication
Lighting Pin and I2C Communication
SPI Lighting and Communication Pin
Dimensions: 65mm x58mm x12mm
Weight: 31g

Usage example

Upload the code to your micro:bit board and insert it into the sensor shield. Then set the output V1 and V2 to 5V, power it via DC jack (DC7-9V). Connect the LM35 sensor and 12C 1602 LCD to the sensor shield using jumper wires. Finally, display the current temperature value on the LCD. You can refer to a sample image below.
