SKU: KS0493

Shield for Micro:bit mini servos Keyestudio

Regular price €7,02
Sale price €7,02 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

Shield compatible with Micro:bit board

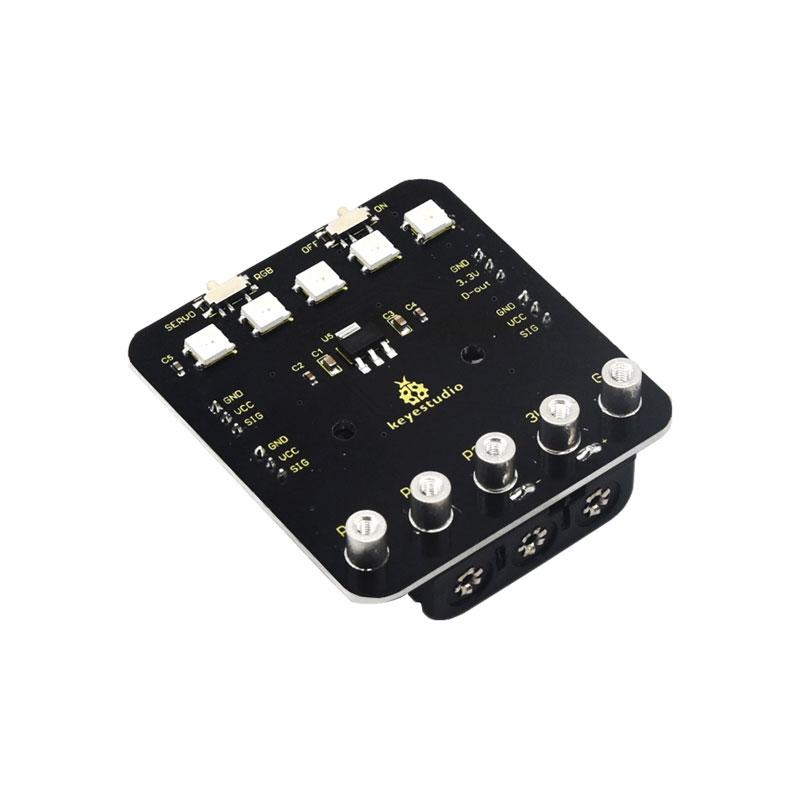

This shield is fully compatible with Micro:bit controller board. This shield developed by Keyestudio comes equipped with SK6812-P4 RGB LED and 4 3-pin ports with 2.54mm pitch.

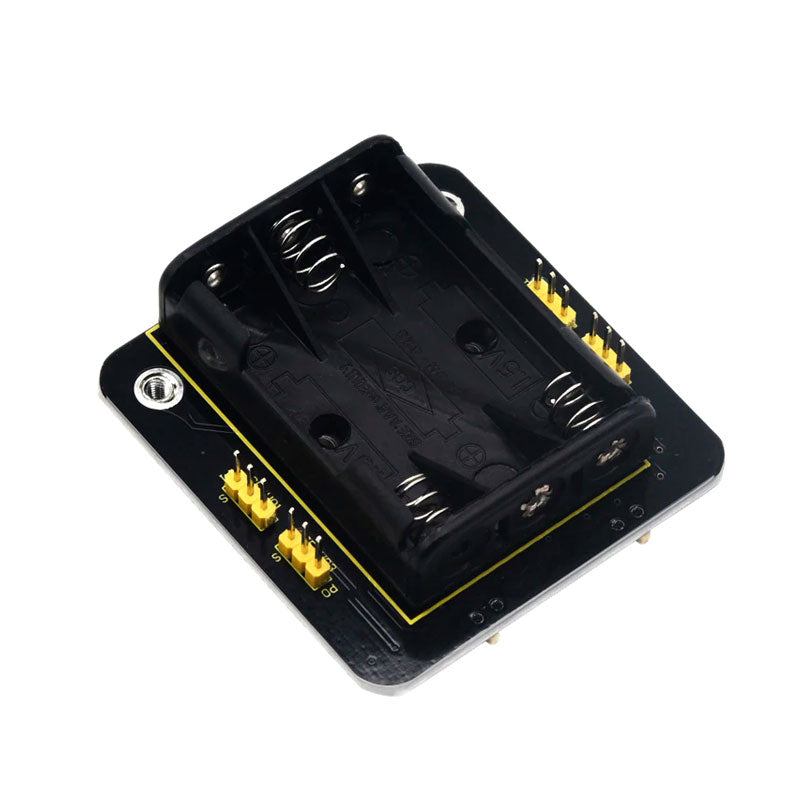

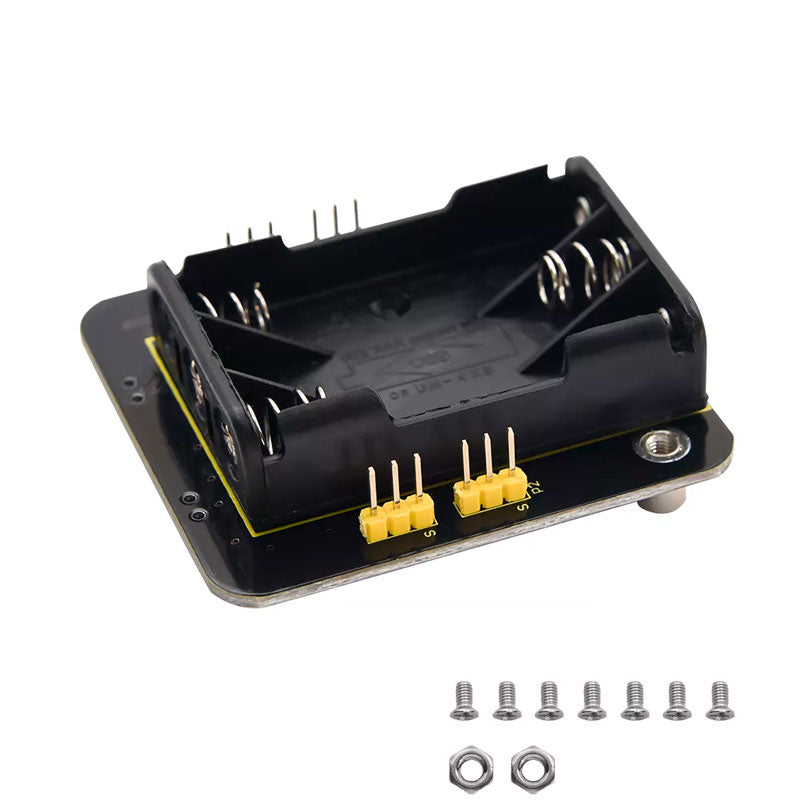

To use, simply attach the battery holder using 2M3 x 6MM flat screws and 2 M3 nuts, place 3 AAA batteries (not included) inside and install the Micro:bit controller board on the car's mini servo shield with 5 M3 x 6MM screws. .

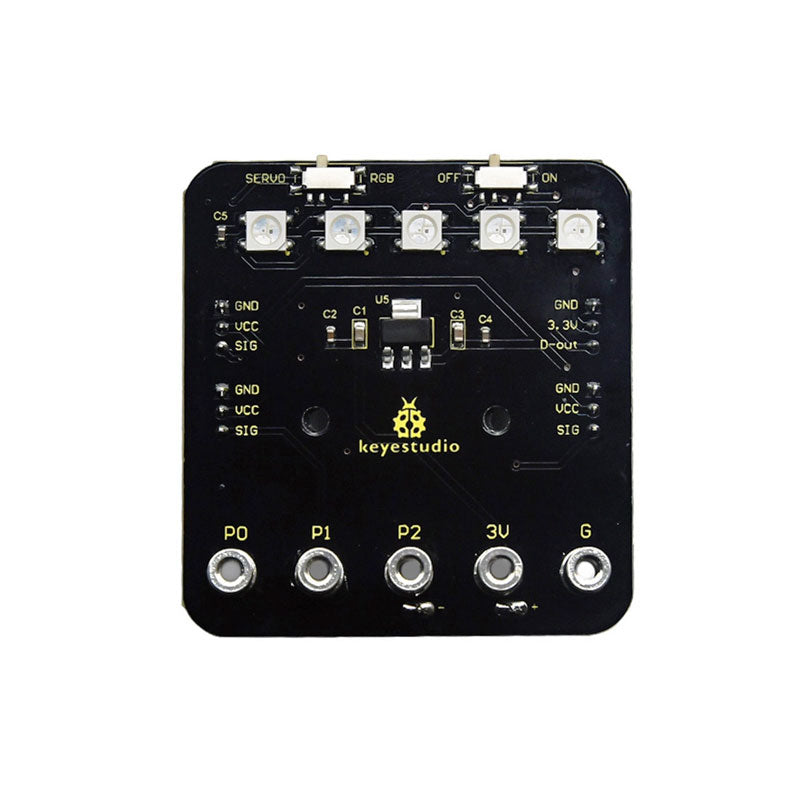

When the DIP switch on the shield is turned to the "On" side, the battery box supplies power, while when turned to the "Off" side, power will not be supplied.

When the DIP switch is set to the RGB end, the Micro:bit controller board can control the color of 5 SK6812-P4 RGB LEDs through encoding. In addition, the 3pin port on the pxl-bxt allows you to connect SK6812 RGB LED modules. -P4 and control its colors.

Technical Specifications

Operating voltage: DC 3.3-5V
Working current: 60mA
Maximum power: 300mA
Working temperature range: -25℃~65℃
Size: 58 x 56 x 21mm
Weight: 24g
Environmental attributes: ROHS

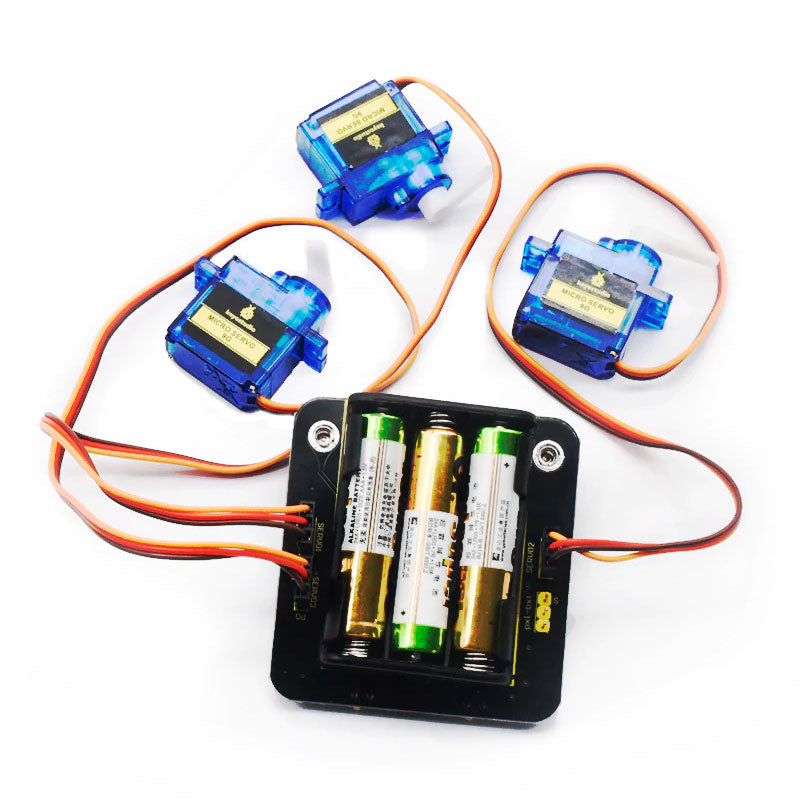

Connection diagram

Schedule
