Shield de luz RGB 6812 para placa Micro:bit Keyestudio
RGB 6812 Light Shield for Micro:bit Keyestudio Board
RGB 6812 Light Shield for Micro:bit Keyestudio Board
Load image into Gallery viewer, Shield de luz RGB 6812 para placa Micro:bit Keyestudio
Load image into Gallery viewer, RGB 6812 Light Shield for Micro:bit Keyestudio Board
Load image into Gallery viewer, RGB 6812 Light Shield for Micro:bit Keyestudio Board

SKU: KS0444

RGB 6812 Light Shield for Micro:bit Keyestudio Board

€9,34
€9,34
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

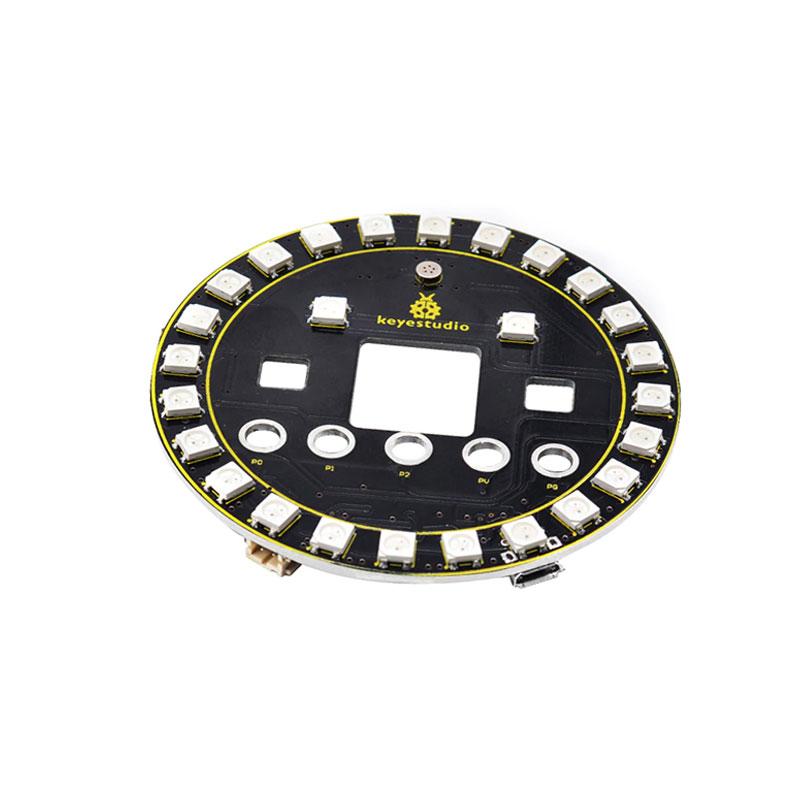

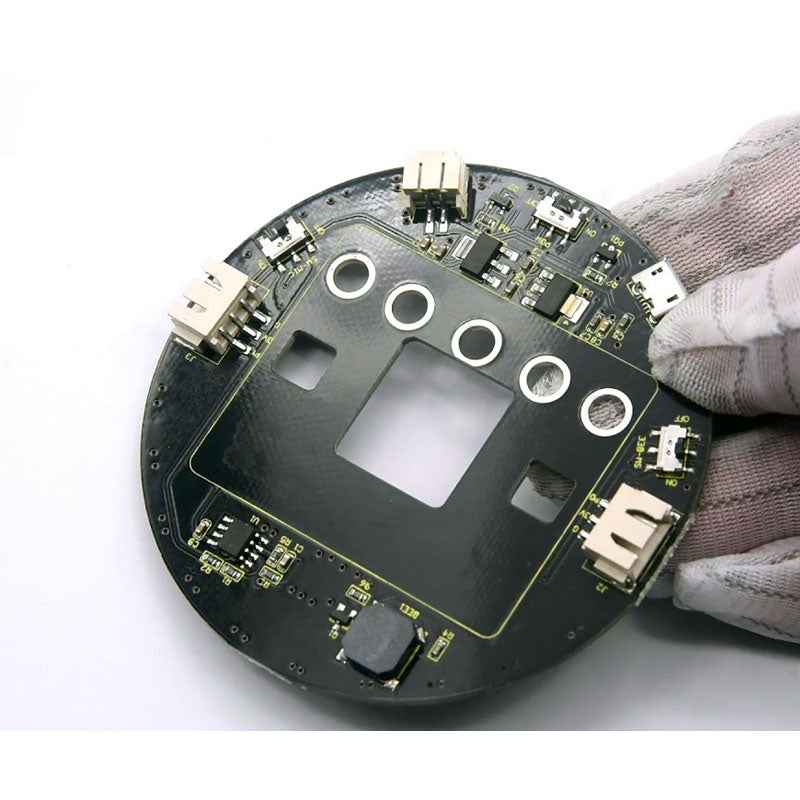

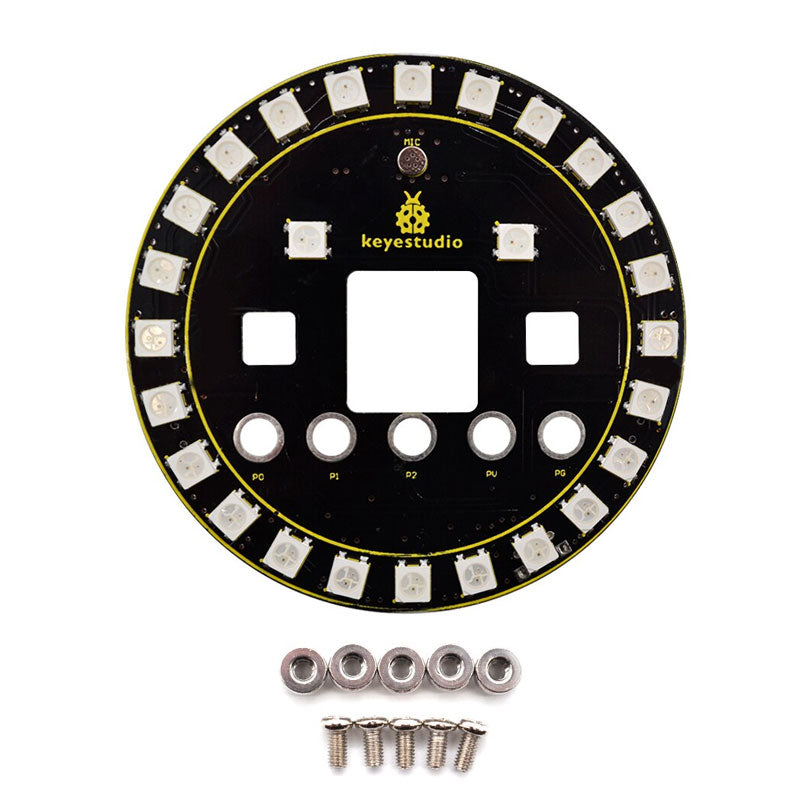

RGB 6812 light shield capable of emitting RGB color spectrum.

Compatible with Micro:bit board.

The module has a total of 5 rings and allows for faster connections to the Keyestudio Micro:bit controller board.

Technical Specifications

Color spectrum: RGB
Diameter: 80 cm
Weight: 26 g

Connection diagram

Schedule

Result

Once the code is uploaded, turn the slide switch to the ON position; turn the passive buzzer slide switch to the OFF position and slide the MIC switch to the ON position.


The 26 RGB LEDs on the shield will light up circularly in red, green, blue, and purple three times. The passive buzzer makes a C-middle, D-middle, E-middle beat twice, for loop.


Open the serial monitor and set the baud rate to 115200, the monitor window will print the analog value of the sound measured by the MIC.
The louder the sound, the higher the analog value. As shown below.
