SKU: KS0256

LCD Display Shield 16 x 2 for Arduino Keyestudio

€6,88
€6,88
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

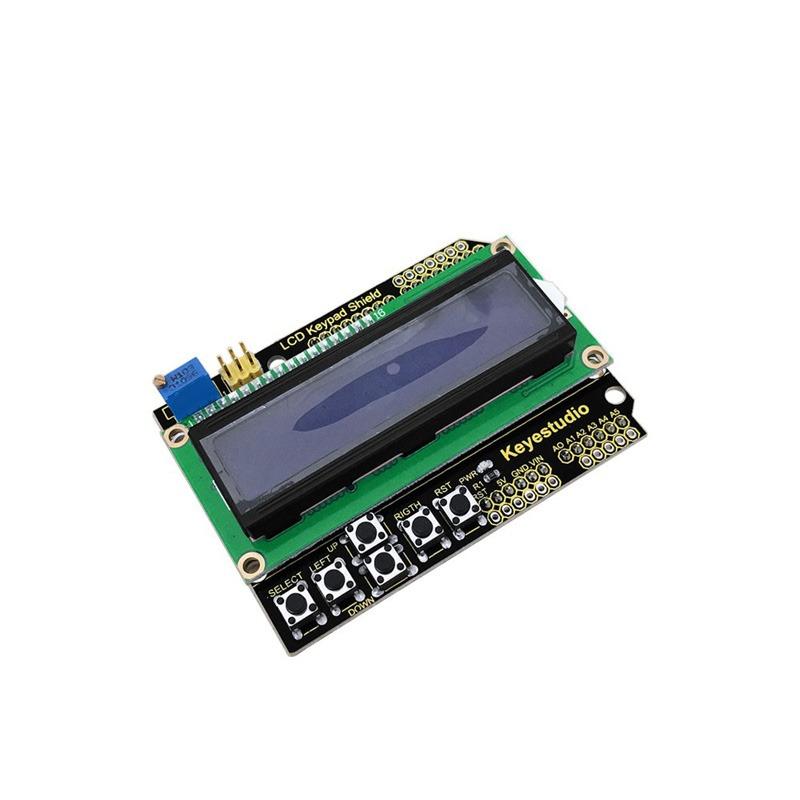

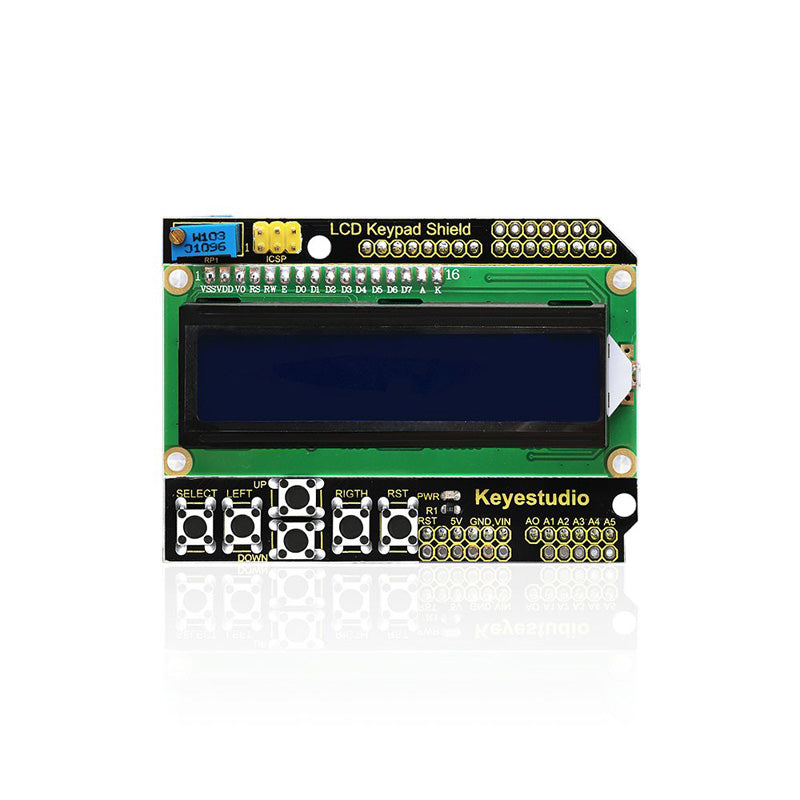

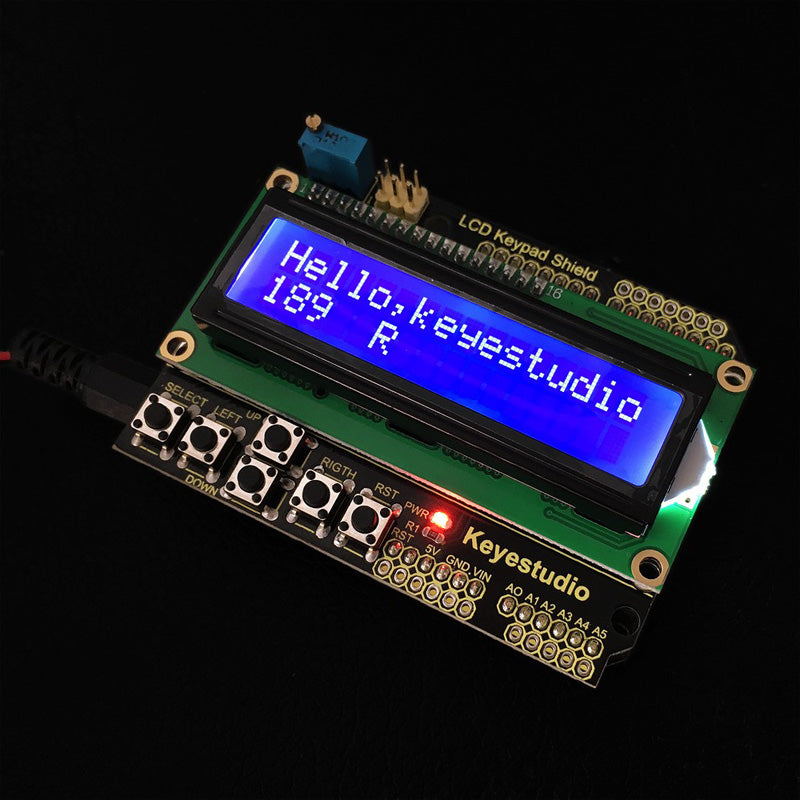

This 16 x 2 LCD Display Shield from Keyestudio integrates a 16 x 2 LCD display and six buttons in a single piece. It is fully compatible with the Arduino UNO R3 control board and works simply by stacking this expansion board with the control. It has a potentiometer that can be used to adjust the display illumination.

Features

LCD Display Shield 16 x 2

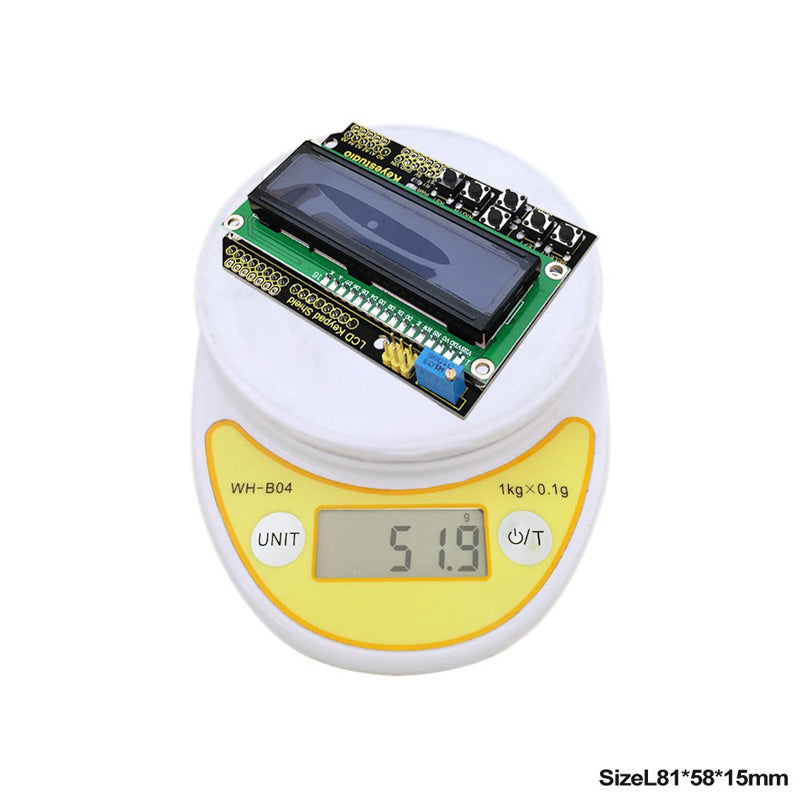

Size: 20.5mm x 41mm
Display Capacity: 16 x 2 characters
Chip operating voltage: 4.5-5.5V
Operating voltage: 2.0 mA (5.0 V)
Optimal operating voltage of the module: 5.0 V
Character size: 2.95 x 4.35 (W x H) mm
Compatible with Arduino UNO R3 Controller Board

Other information

There are two communication modes between the 16 x 2 LCD display and the UNO R3 Control Board: via the eight-bit connection method or the four-bit connection method.

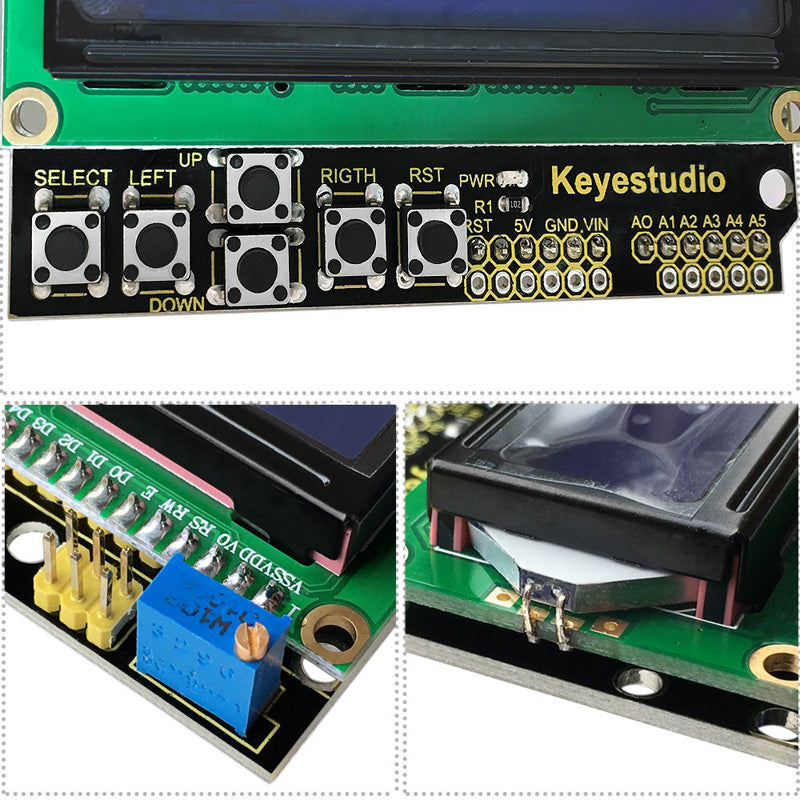

There are six buttons on the expansion board, including five control buttons and one reset button. The five control buttons should be connected to analog port A0, and when different buttons are pressed, analog port A0 will transmit simulations of different values.
