SKU: KS0259

PN532 NFC/RFID controller shield for Arduino Keyestudio

Regular price €16,33
Sale price €16,33 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

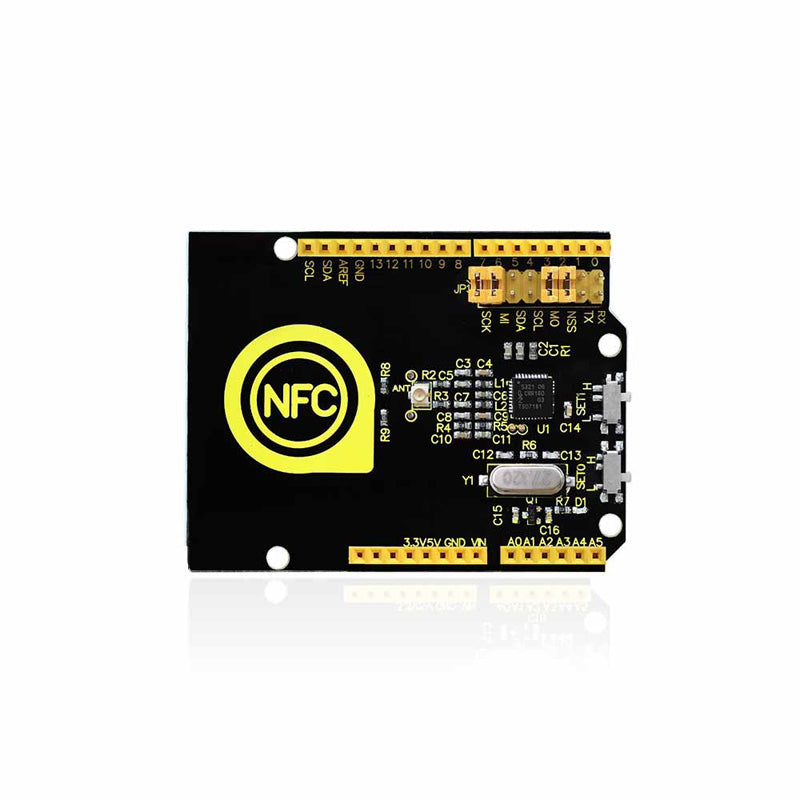

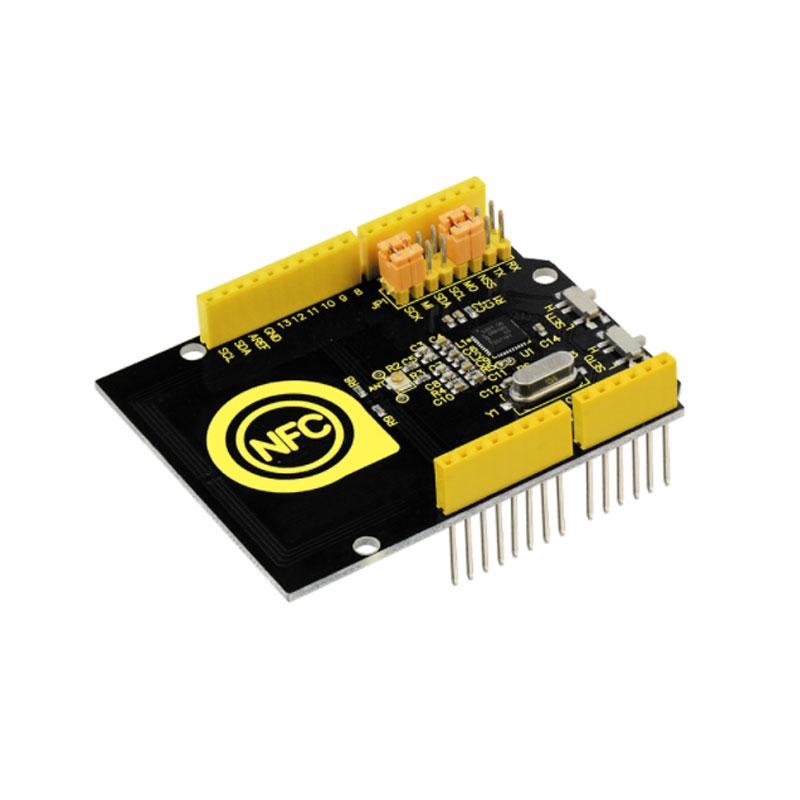

This PN532 NFC/RFID Controller Shield from Keystudio integrates a PN532 chip and is used to create a communication field with a frequency of about 13.56MHz. It is equipped with an onboard antenna, so there is no need for an external antenna. It supports SPI, IIC, UART communication interface. When using it, stack it directly on the Arduino UNO R3 Controller Board.

Features

Shield PN532 NFC/RFID controller

Chip: NXP PN532
Working voltage:3.3V
Supply voltage:3.3~5.5V
Current strength (maximum): 150mA
Operating voltage (standby mode): 100 mA
Operating voltage (recording mode): 120 mA
Operating voltage (reading mode): 120 mA
Pointer: PWR
Longest efficient communication distance: 5cm

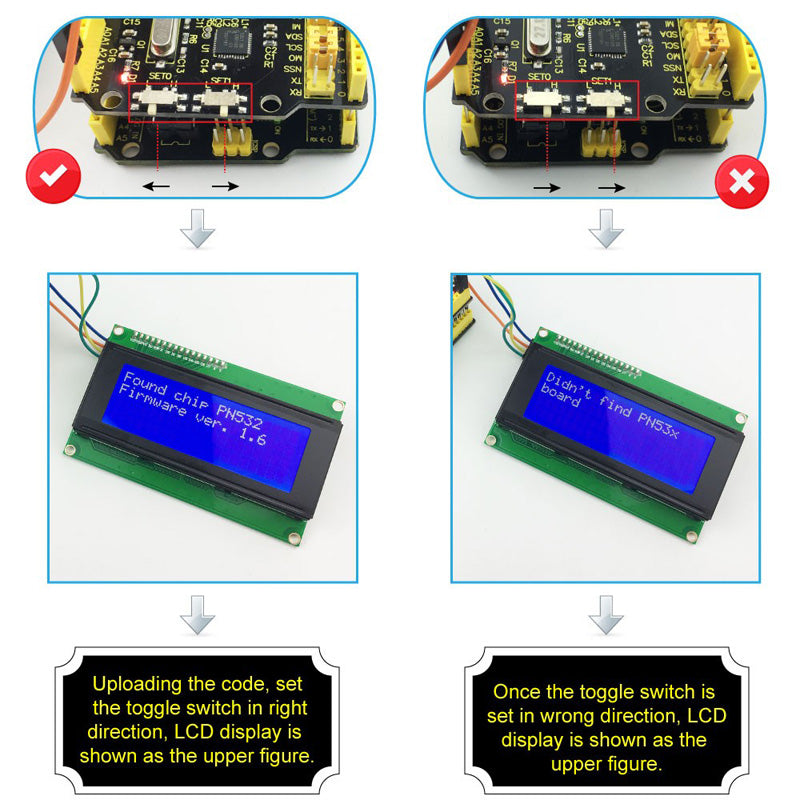

It has SPI, IIC, UART interface switch

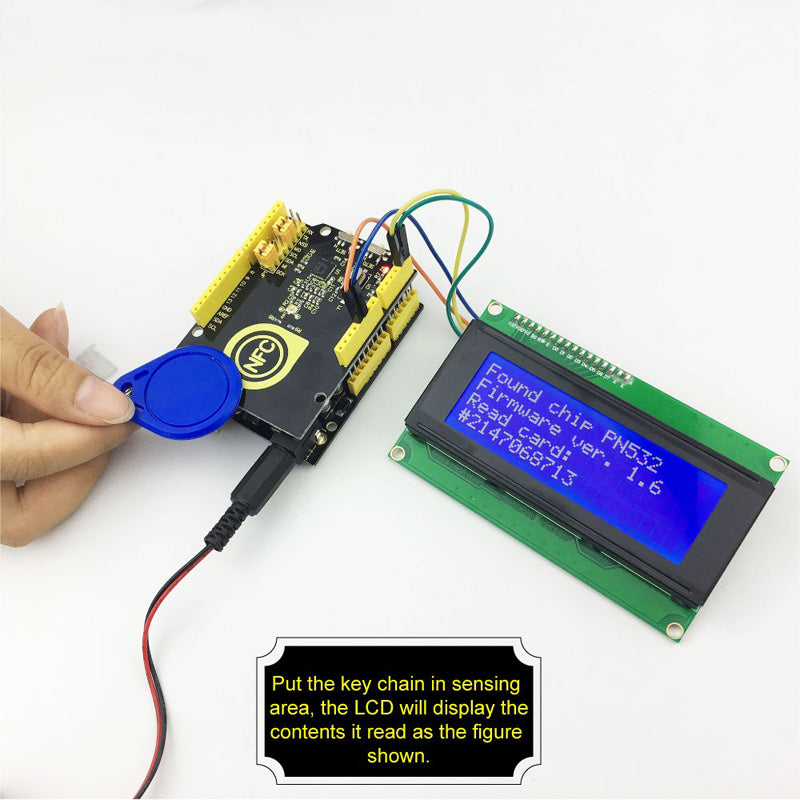

It can be used for 13.56MHz contactless communication.
Compliant with ISO14443 standard type A and B

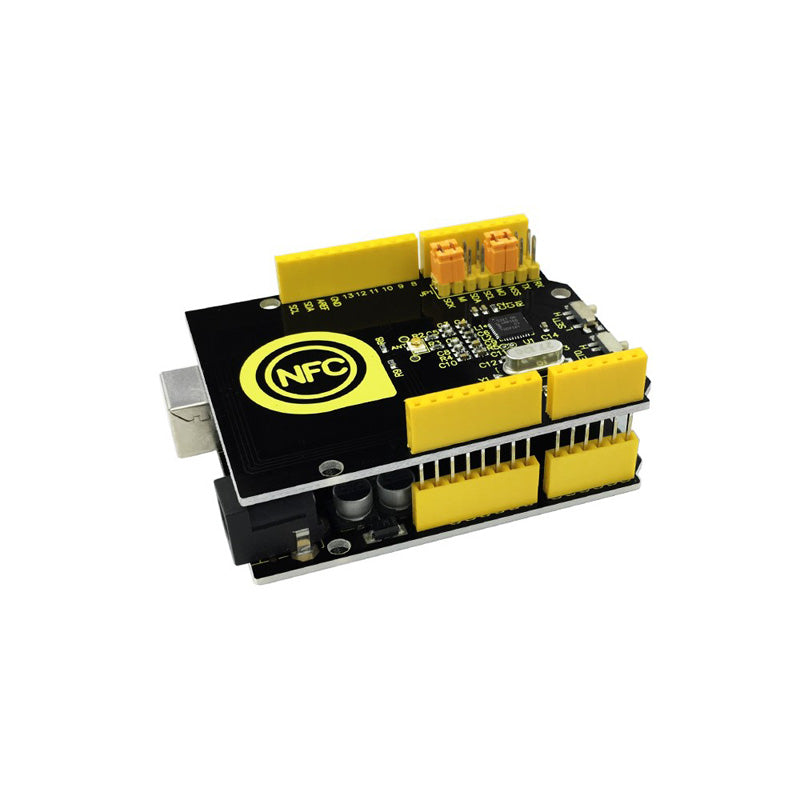

Pairing with Arduino UNO R3 Control Board

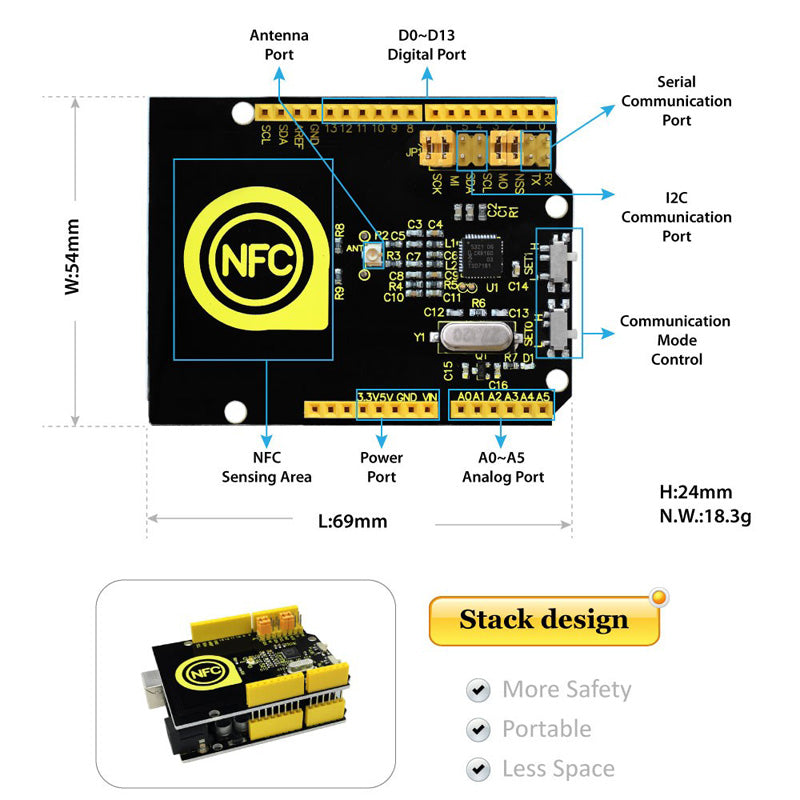

Stackable Design

- Greater security;
- Transportable;
- Takes up less space.
