SKU: KS0516

Shield with expansion board + TF card for Keyestudio data recording

Regular price €4,89
Sale price €4,89 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

Shield with expansion board + TF card for Keyestudio data recording

This shield is compatible with the Arduino system and was developed with the aim of helping the user to monitor various data, saving time and resources.

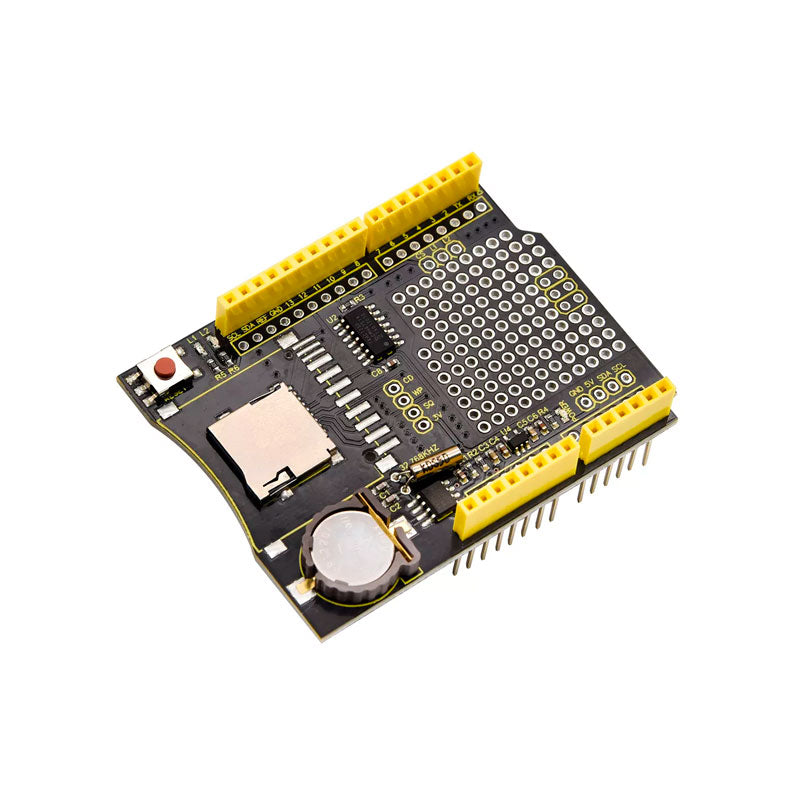

This board features a DS1307z RTC (Real-Time Clock) chip that allows users to keep track of time. In addition, the integrated TF card interface makes it possible to save information detected by the UNO board.

To facilitate its expansion function, the board is further equipped with circular fixing holes with 2.54mm spacing.
This expansion board is only compatible with UNO controller boards.

Features:

  • Operating voltage: DC 5V

  • Operating current: 60mA

  • Maximum power: 0.3W

  • Operating temperature: -10℃ to +50℃

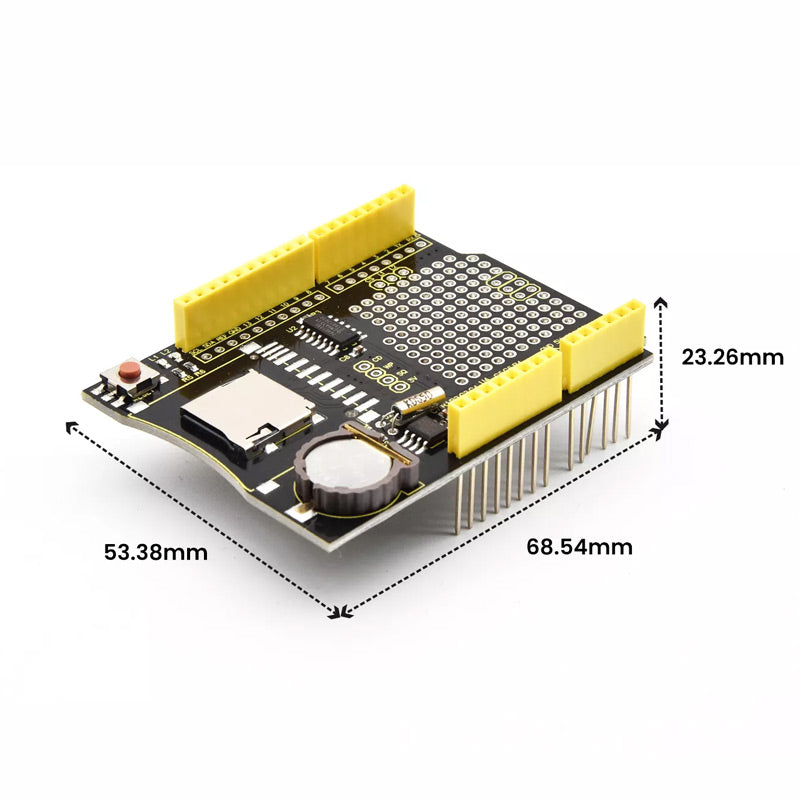

  • Dimensions: 68.54mm x 53.38mm x 23.26mm

  • Battery: CR1220

  • Environmental attributes: ROHS
