SKU: KS0521

Keyestudio Solar Charger Shield

Regular price €7,63
Sale price €7,63 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

Keyestudio Solar Charger Shield

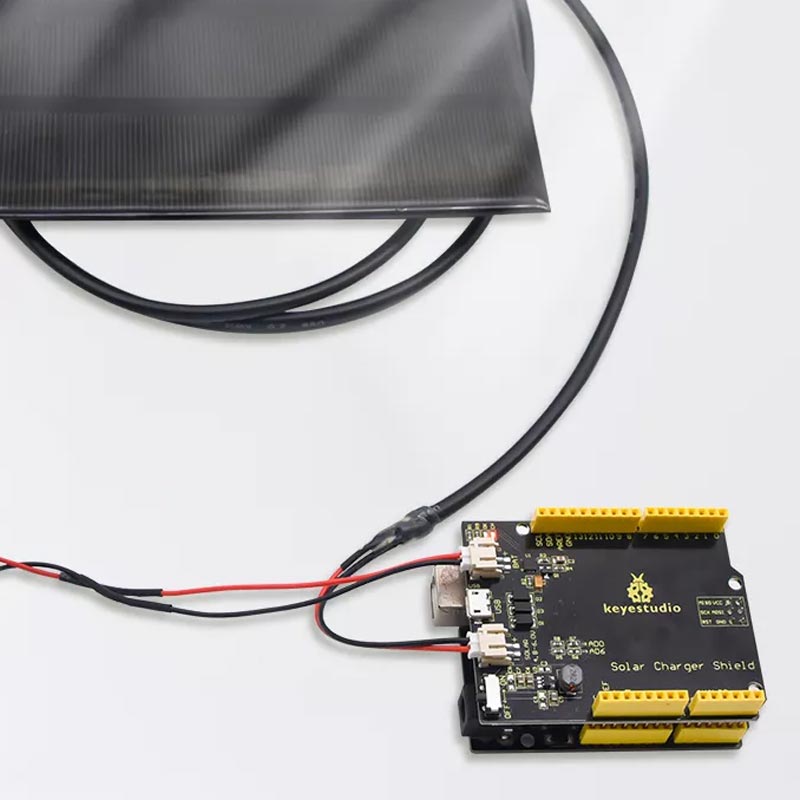

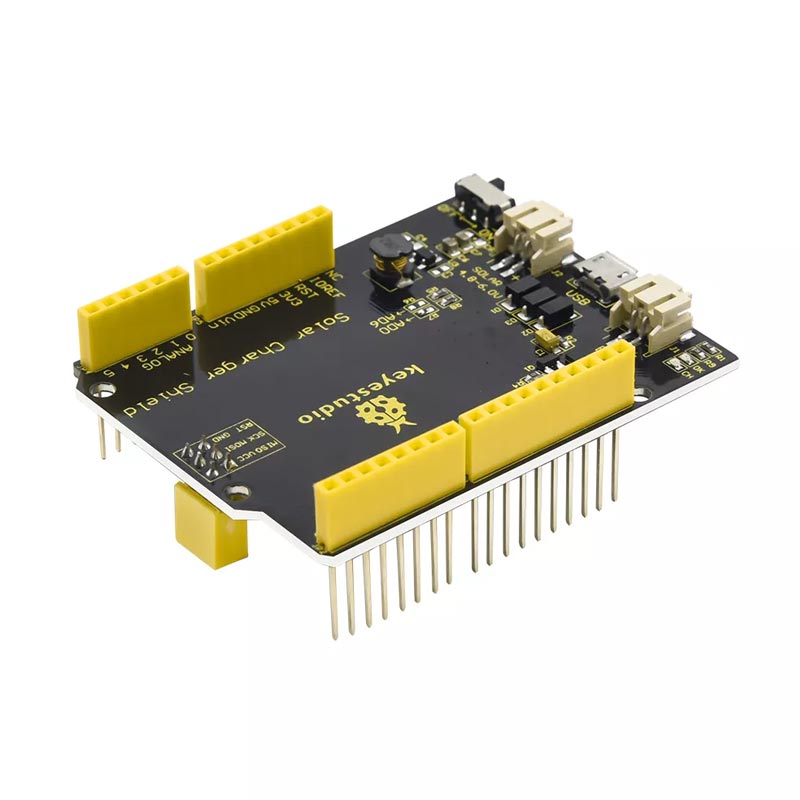

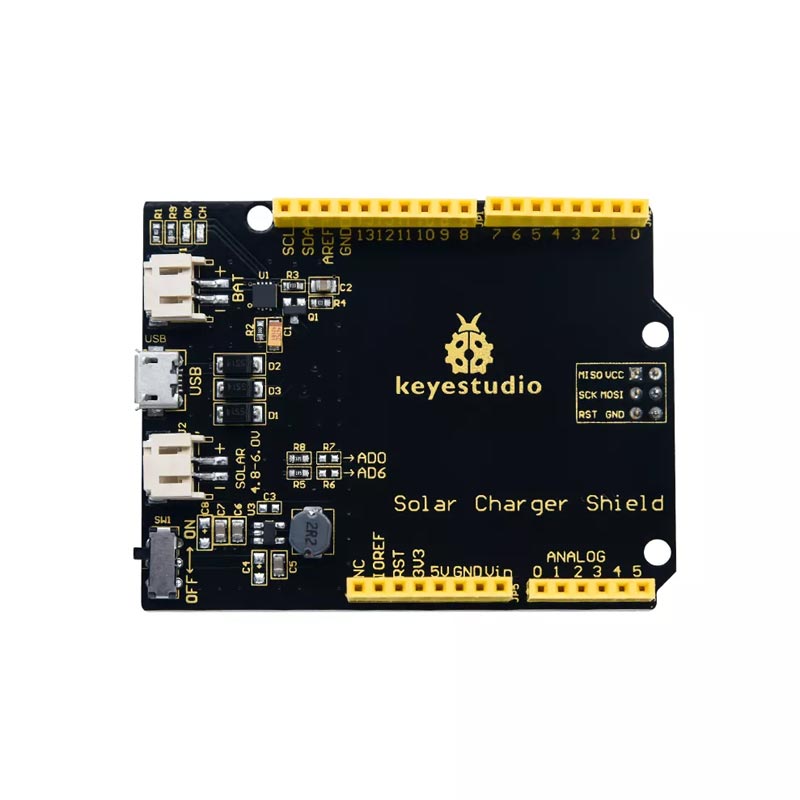

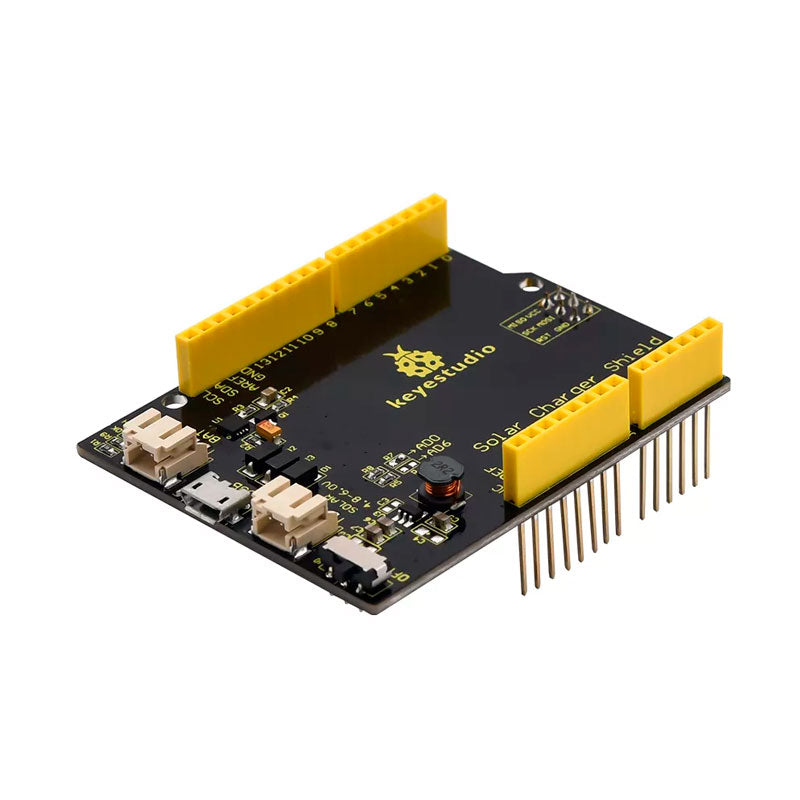

The keyestudio solar charger shield has the features of energy harvesting, power management and charging, as a stacked shield and compatible with the UNO R3 control board. In this shield, the BAT interface can output 5V when connected to 3.0V-4.2V rechargeable batteries. At the same time, the USB interface connected to external power and the SOL AR port connected to the solar panel can supply power to external batteries. When the DIP is dialed to the ON end, external batteries or USB port supply power to the UNO R3 board. In addition, CH LED (red) is on when charging the external battery; the OK LED indicator will light up if it is fully charged.

Features:

  • Battery input voltage: DC 3.0-4.5V

  • USB Input Voltage: DC 4.75-5.25V

  • Solar input voltage: DC 4.8-6V

  • Max Output Power (with battery): 3W (600mA@5V)

  • Ripple voltage: <100mV @ 500mA

  • Size: 73 x 51mm

  • Weight: 19.2g
