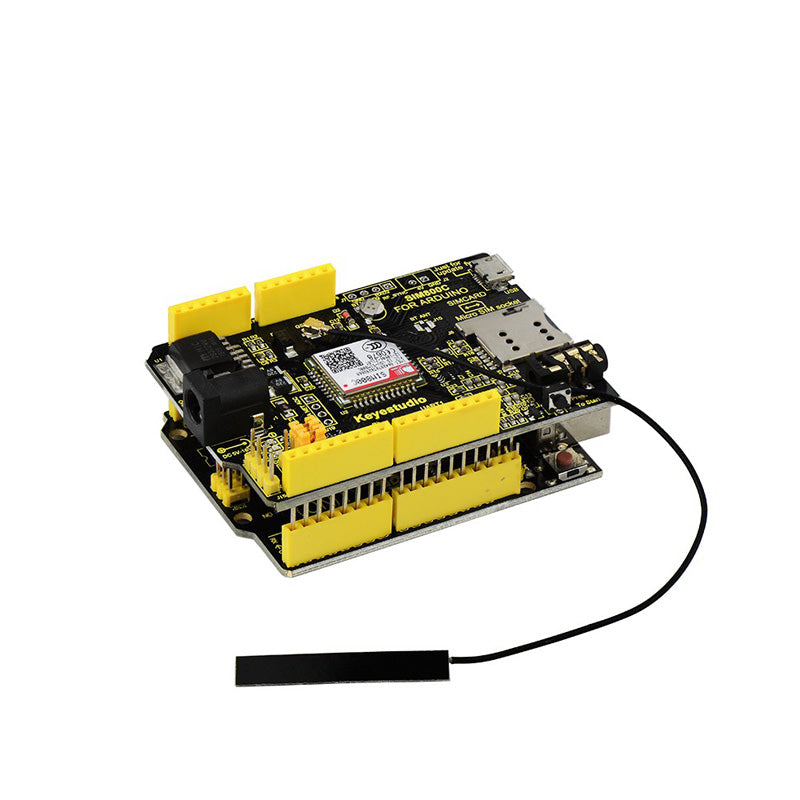

Load image into Gallery viewer, Placa de expansão Shield Cartão SIM 800C Keyestudio

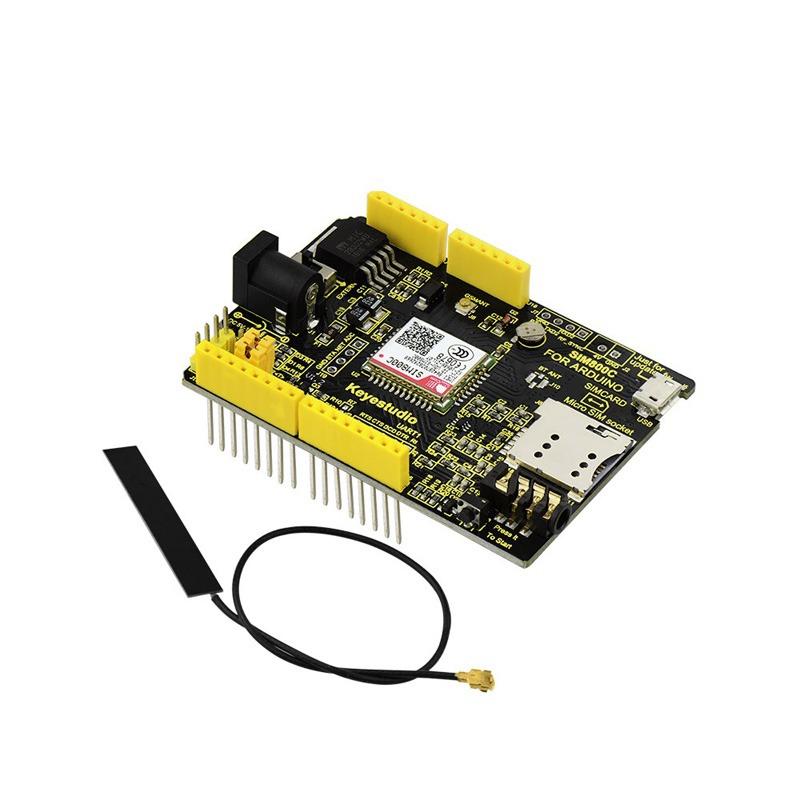

Load image into Gallery viewer, Keyestudio 800C SIM Card Shield Expansion Board

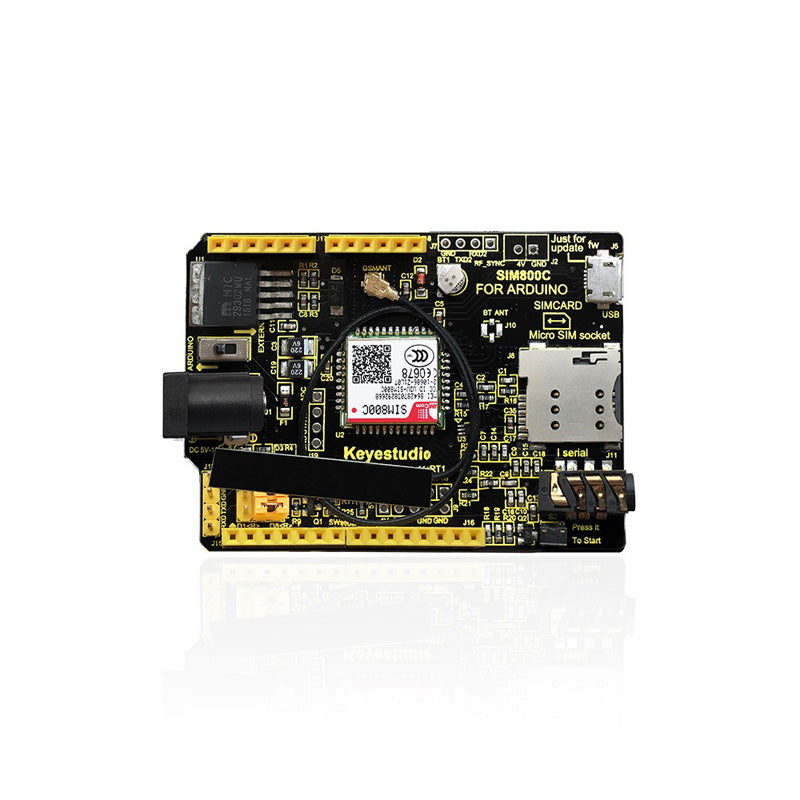

Load image into Gallery viewer, Keyestudio 800C SIM Card Shield Expansion Board

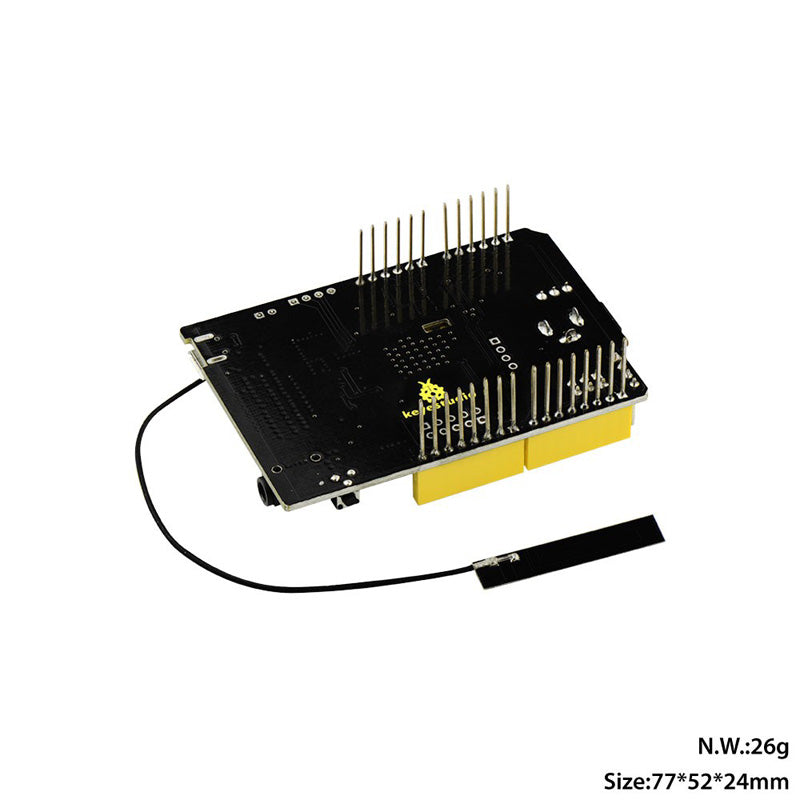

Load image into Gallery viewer, Keyestudio 800C SIM Card Shield Expansion Board

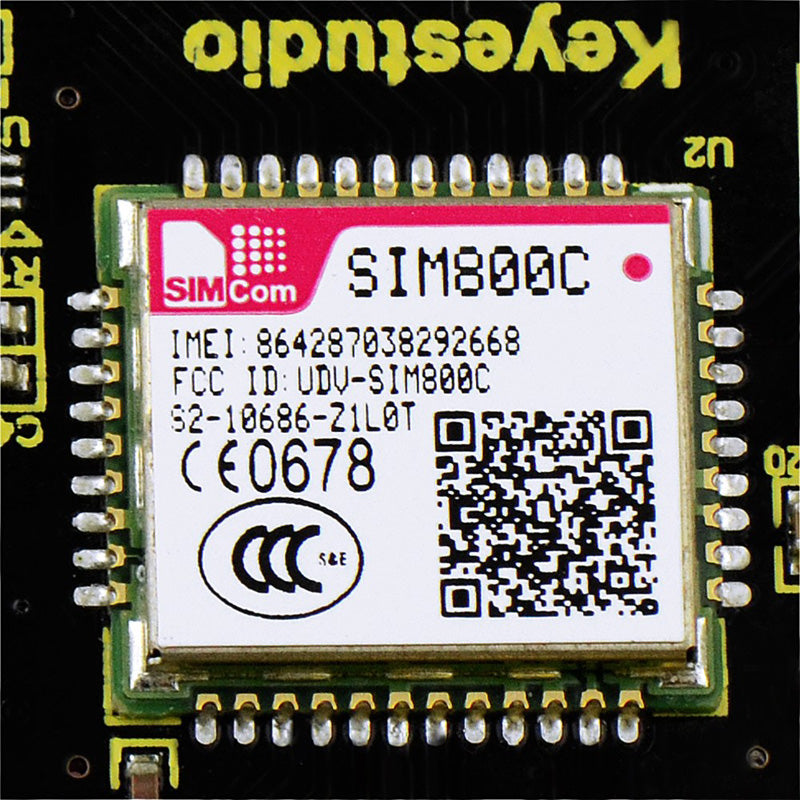

Load image into Gallery viewer, Keyestudio 800C SIM Card Shield Expansion Board

SKU: KS0254

Keyestudio 800C SIM Card Shield Expansion Board

Regular price €21,37
Sale price €21,37 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

This SIM Card Shield Expansion Board 800C, from Keyestudio, is a shield module with a built-in SIM 800 chip and works with frequencies of EGSM 900MHz / DCS 1800MHz and GSM850 MHz / PCS 1900MHz. It has the function of DTMF, FTP, Bluetooth, SMS, among others. The board can be controlled through AT command, using an Arduino Board and the computer.

Features

SIM Card Shield Expansion Board 800C

Power Source: 6-12V
Low power consumption mode: 0.7mA voltage in sleep mode
Low power consumption: 100mA @ 7V-GSM
GSM 850/900/1800/1900MHz
GPRS multi-slot class: 1 ~ 12
GPRS mobile station class: B
GSM phase 2/2 + standard
Class 4 (2 W @ 850/900 MHz)
Class 1 (1W @ 1800/1900MHz)
Controlled via AT command
USB/Arduino Control Switch
Serial baud rate adaptation
Features DTMF
The LED indicator conveys the status of the power source, the status of the network and the operating mode.

Applications

Mobile Phone: Calls and Alarms
Bluetooth: Communication with other devices
SMS: Sending Messages, Alarm Text and Remote Control
FTP: Used in Firmware Update
MMS: Sending images, Alarms and Monitoring
HTTP: Web Server Communication Data Interaction
TCP/IP: TCP UDP Bidirectional Communication, Data Collection and Remote Control
DTMF: Keyboard input monitoring to control the keyboard when calling
