SKU: KS0270

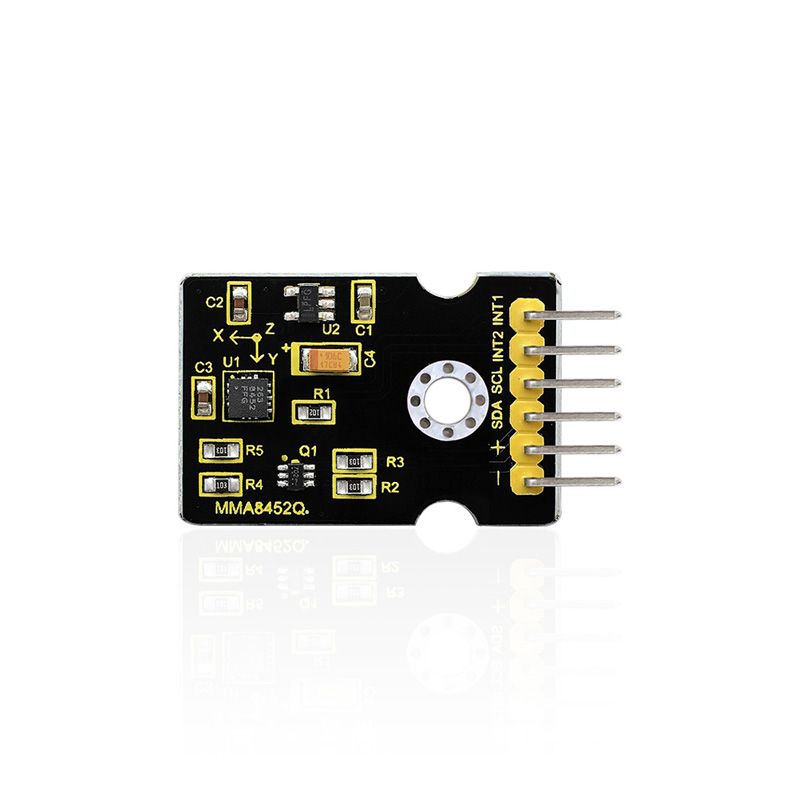

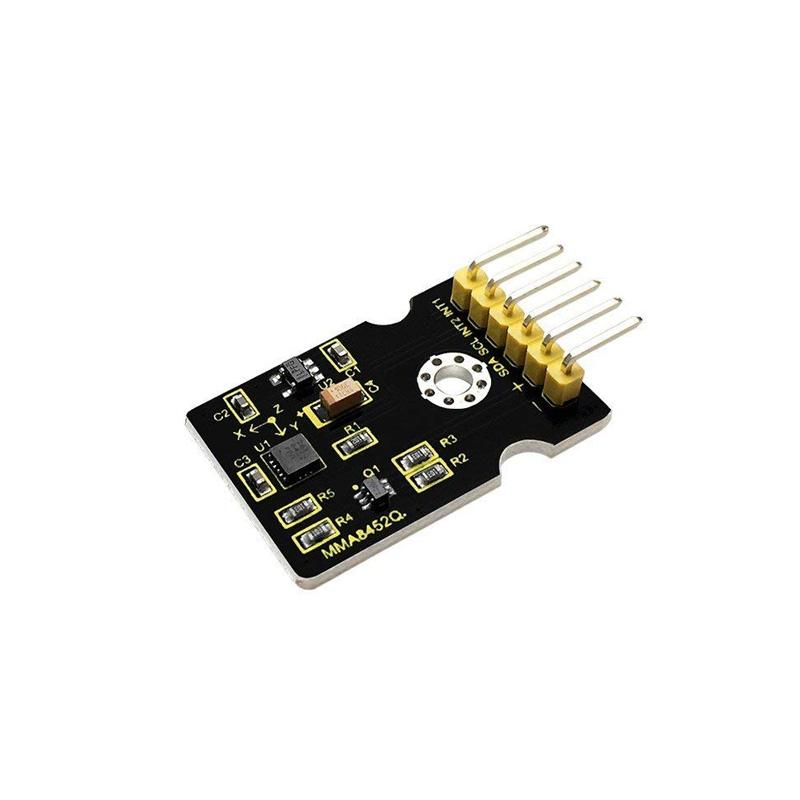

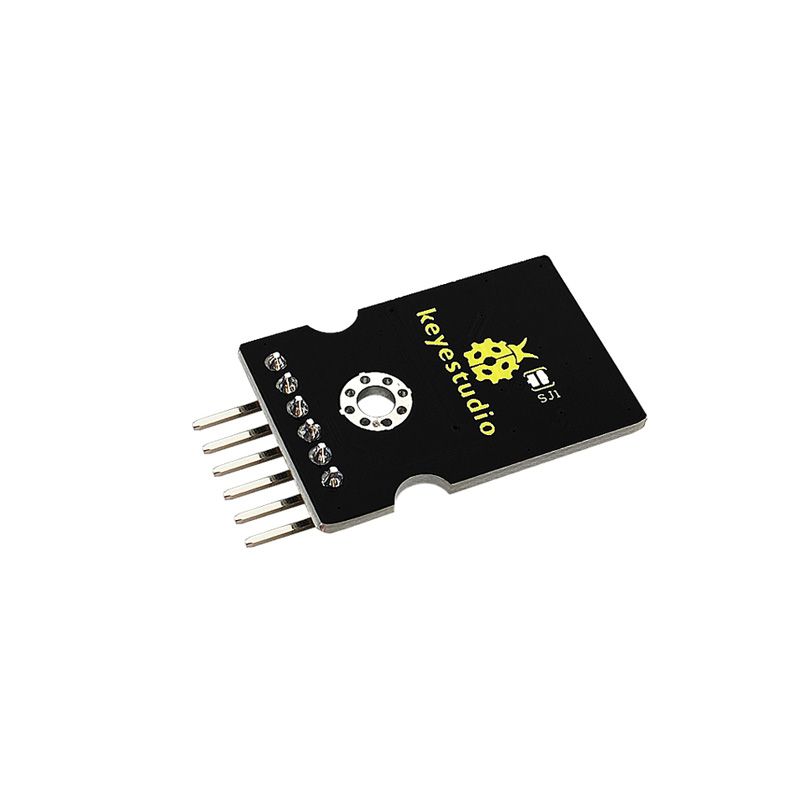

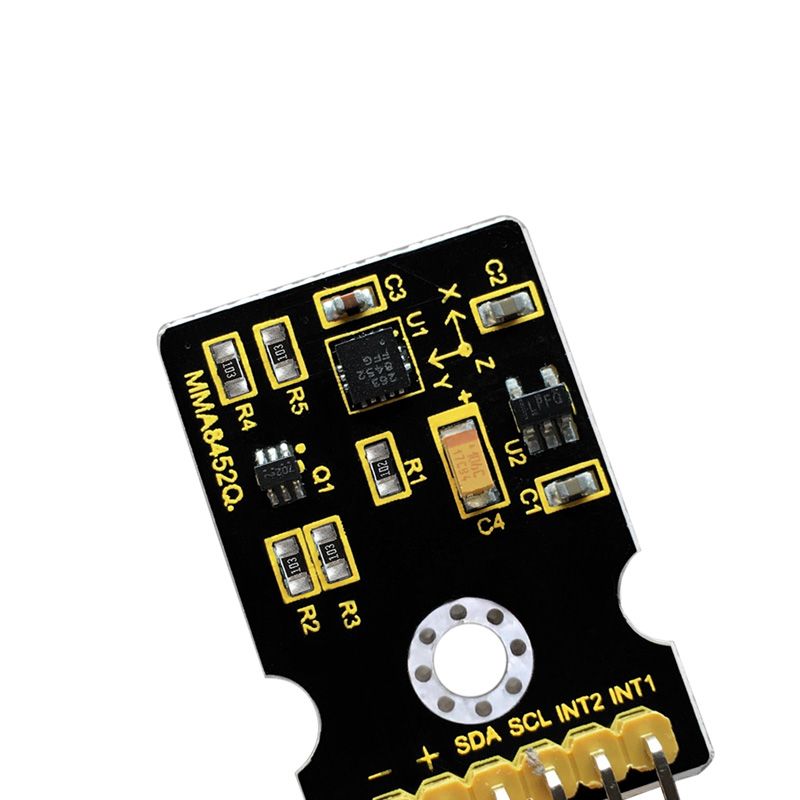

Keyestudio MMA8452Q 3-axis acceleration sensor module

Regular price €4,19
Sale price €4,19 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

The MMA8452Q module is a 3-axis accelerometer with 12-bit resolution. It features flexible programming options and two interrupt pins for configuration.

Features

  • Working voltage: DC 3.3V to 5 V
  • ±2g/±4g/±8g Optional dynamic range
  • Output data rate (ODR) range:1.56 Hz to 800 Hz
  • Noise:99μg/√Hz
  • Digital outputs: 12-bit and 8-bit
  • I2C digital output interface (up to 2.25 MHz when resistance is 4.7kΩ);
  • Two programmable interrupt pins applied to six sources
  • Three built-in motion channels: free fall, pulse and shaking
  • Direction detection (transverse/longitudinal)
  • Consumption: 6μA – 165μA

Connection diagram

📄 See Schedule
