SKU: KS0001

Arduino UNO R3 Keyestudio Controller Board

€19,99
€19,99
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

This Arduino UNO R3 controller board is based on the ATmega328 and has great compatibility with various Arduino components .

It has 14 digital I/O pins (of which six can be used as PWM outputs), six analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. In short, it contains everything needed to support the microcontroller. To get started, simply connect it to a computer via a USB cable or power it with an AC-to-DC adapter or a battery.

Features

Arduino UNO R3 Controller Board

Microcontroller: ATmega328P-PU
Operating voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (limit): 6-20V
Digital I/O pins: 14 (of which 6 provide PWM outputs)
PWM Digital Pins: 6
Analog input pins: 6
Continuous Current per I/O pin: 20 mA
Continuous Current for 3.3V pin: 50 mA
Flash memory: 32 KB (ATmega328P), of which 0.5 KB is used by the bootloader
SRAM: 2KB (ATmega328P)
EEPROM: 1 KB (ATmega328P)
Clock Speed: 16 MHz

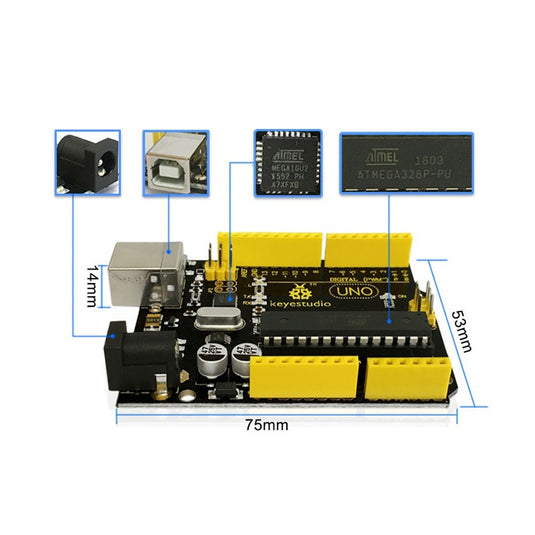

Length: 68.6mm
Width: 53.4 mm
Weight: 25 g

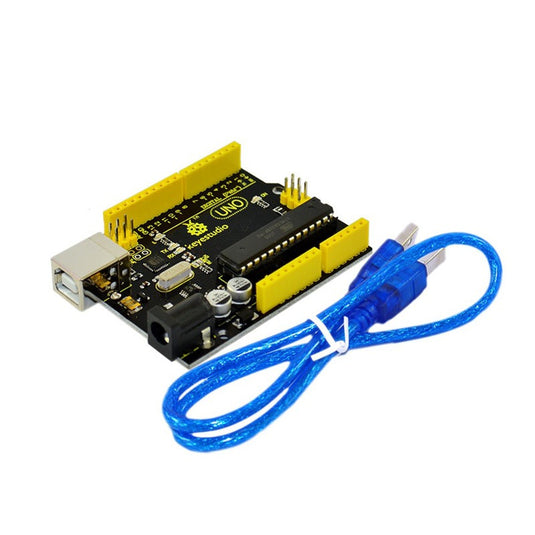

Includes

Arduino UNO R3 Controller Board
USB cable

Other information

This Arduino UNO R3 controller board differs from previous boards in that, instead of using FTDI USB-to-serial driver chip, has an ATmega16U2, programmed as a USB converter.
Pinout 1.0: SDA and SCL pins were added near the AREF pin and two more pins near the Reset pin, which allow the shields to adapt to the voltage provided by the board. In the future, the shields will be compatible with both the board that uses AVR and works at 5V, and with the Arduino Due, which works at 3.3V.
The second is an unconnected pin, reserved for future functionality.
Powerful reset circuit.
