Módulo joystick p/ Micro:bit
Joystick module for Micro:bit
Load image into Gallery viewer, Módulo joystick p/ Micro:bit
Load image into Gallery viewer, Joystick module for Micro:bit

SKU: KS0481

Joystick module for Micro:bit

€2,74
€2,74
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

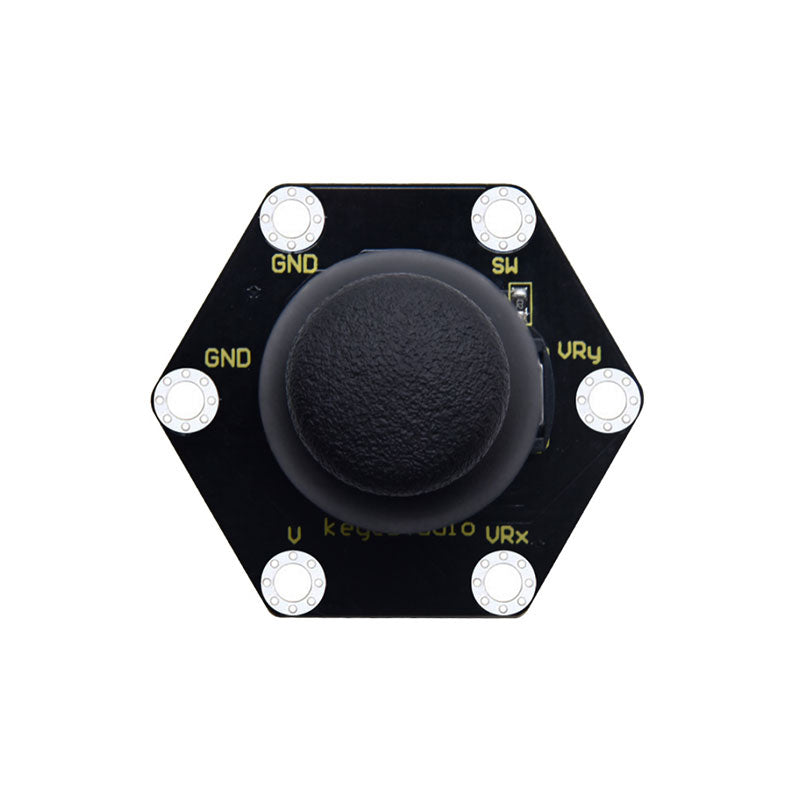

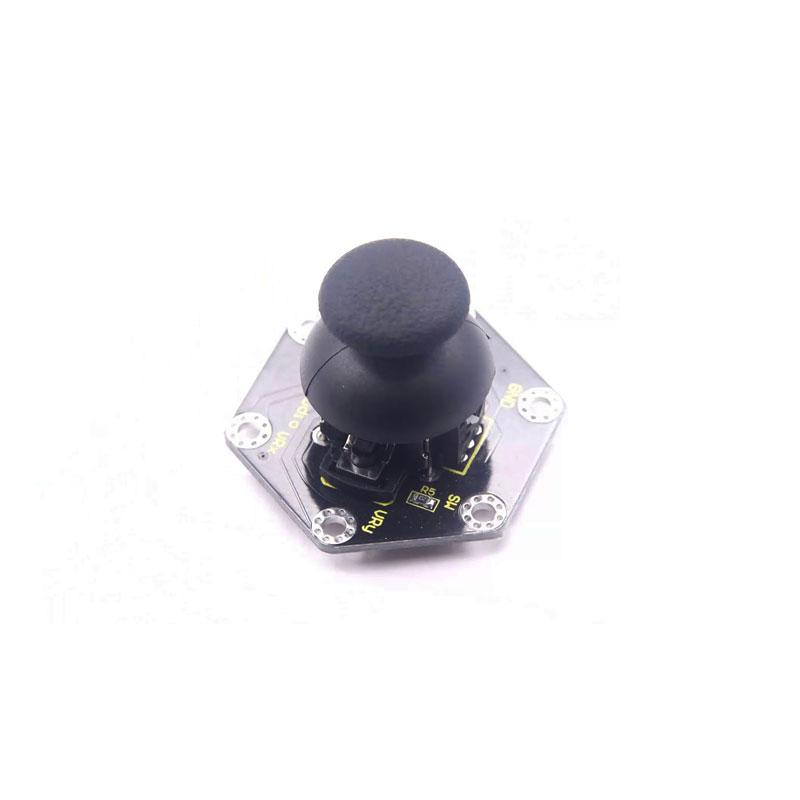

Keyestudio Micro:bit Keyestudio PS2 joystick module is fully compatible with Micro:bit control board. There are 6 ports on the module, 2 GND ports are connected. To control it, you need to connect the VRx, VRy port to the analog port of the Micro:bit control board, and the SW port to the digital port of the Micro:bit control board. We can judge the working status of the joystick on the module by reading the two analog values ​​and the high and low levels of a digital port.

Note: When testing the SW port function, for some products, it is necessary to connect a resistance to the SW interface (connect to the VCC port after connecting a resistance). In this way, the port function is valid, otherwise the SW port is invalid.

Features

Operating voltage: DC 3.0-3.3V
Control port: analog port (VRx VRy) and digital port (SW)
Dimensions: 40mm*45mm*31mm
Weight: 11.5g
Environmental characteristics: ROHS

Connection diagram

Schedule
