Kit DIY para Robô Maker OTTO
DIY Kit for OTTO Maker Robot
DIY Kit for OTTO Maker Robot
DIY Kit for OTTO Maker Robot
Load image into Gallery viewer, Kit DIY para Robô Maker OTTO
Load image into Gallery viewer, DIY Kit for OTTO Maker Robot
Load image into Gallery viewer, DIY Kit for OTTO Maker Robot
Load image into Gallery viewer, DIY Kit for OTTO Maker Robot

SKU: KS0358

DIY Kit for OTTO Maker Robot

€51,26
€51,26
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

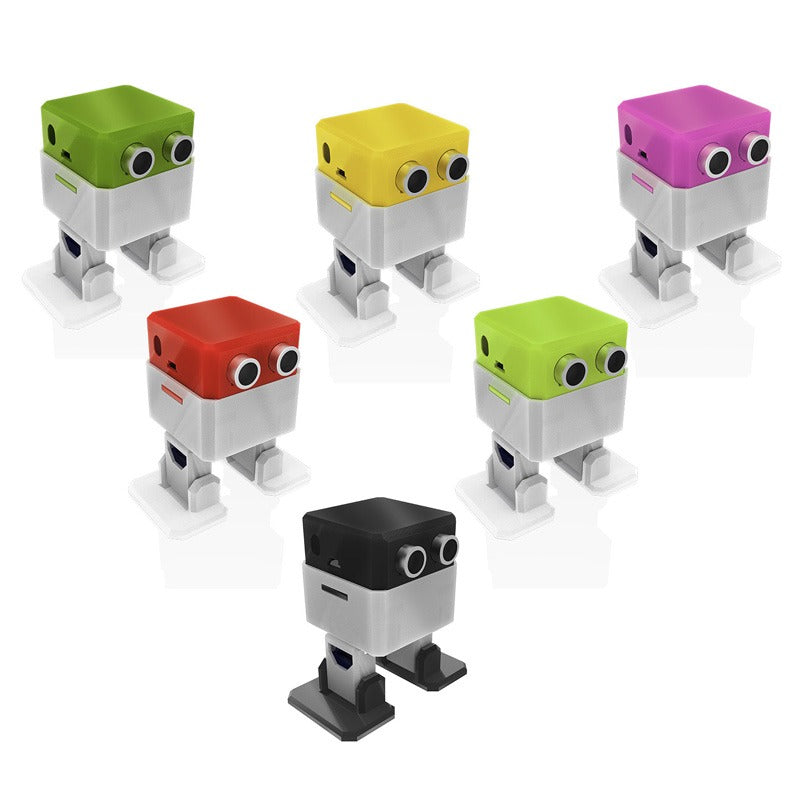

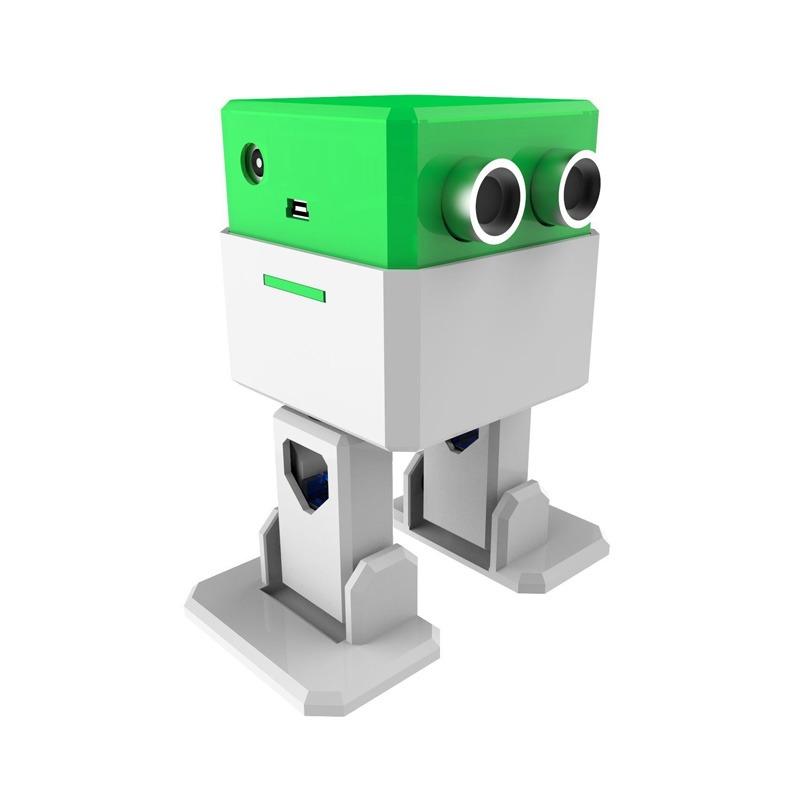

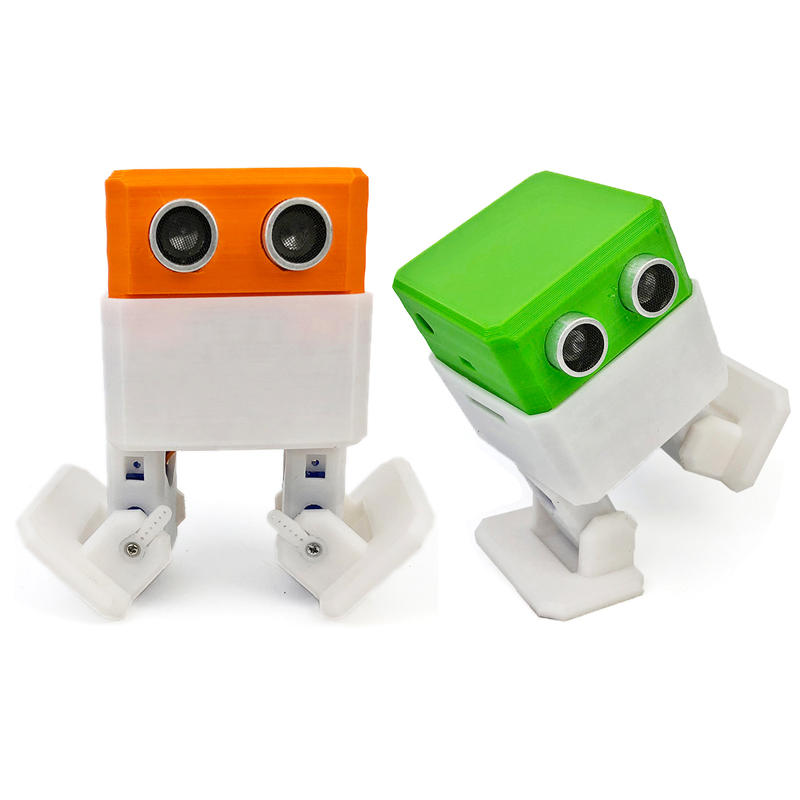

The OTTO Maker Robot DIY Kit contains everything you need to build an OTTO in just one hour! OTTO is a small robot that can walk, dance, make sounds, avoid obstacles and is sure to entertain you. Plus, it's completely open-source and compatible with Arduino.

The OTTO structure is built by assembling different parts, which are not included in the Kit. Therefore, you can create the little OTTO yourself on a 3D Printer.

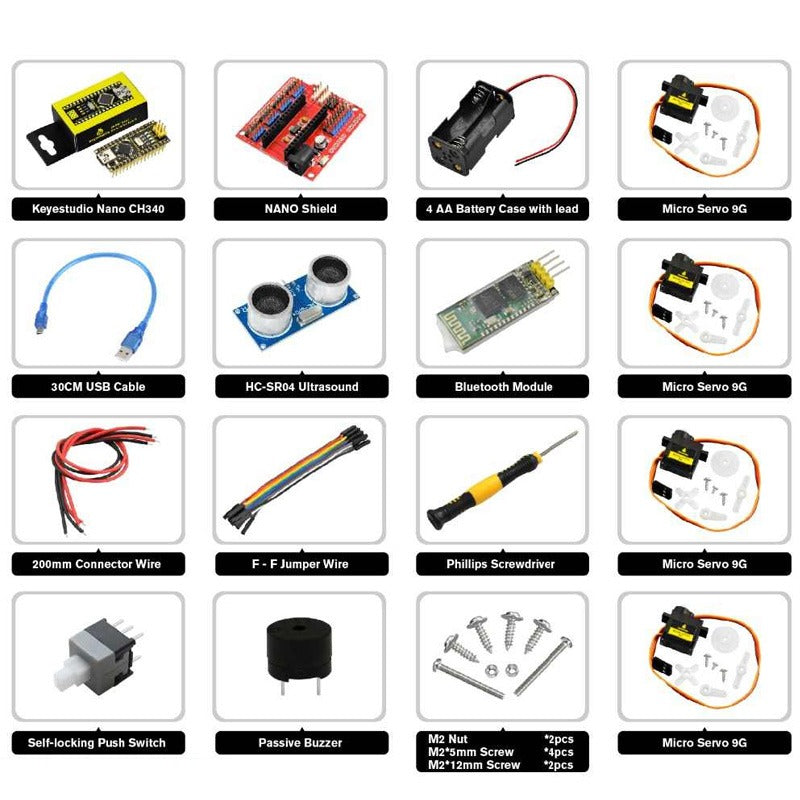

Includes

1 Shield Nano
1 CH340 controller board
1 HC-SR04 Sensor
1 HC-06 Bluetooth Module
4 Micro Servo 9g
1 Passive Buzzer
1 Screwdriver
2 Black connection cables 200 mm
2 Red connection cables 200 mm
1 USB Cable
10 Female/Female Jumper Cables
1 Self-locking switch
2 M2*12MM Screws
2 M2 Nuts
2 M2X5MM Screws
1 Holder for 4 AA batteries


3D Printing

To build OTTO, you will need to print just 6 models:
Head
Body
Two legs
Right foot
Left Foot

First of all, you should make sure that your printer is suitable for printing the models mentioned. Please read the following recommendations carefully:

Use an FDM 3D printer with PLA material;
No support needed;
The Resolution should be 0.15mm;
The fill density should be 20%.
