Edge IO Breakout Connector for Keyestudio Micro:bit Board

€5,90
€5,90
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

This breakout board is designed to provide an easier way to connect additional circuitry and hardware to the connector on the edge of the BBC Micro:bit controller board. It provides an easy way to connect circuits using crocodile clip jumper wires.

In addition, this connection component provides access to a series of pins on the BBC Micro:bit processor, such as the IO (input/output) power interface, connection pins P0, P1, P2, P3, P12, P13, P14, P15, P16, P19, P20.
Two ways to supply energy
There are 2 types of power supply for the BBC breakout board and controller board:

Directly connect the charged battery case with adequate power to supply to the Micro:bit mainboard
Connect the 3V GND to the gold holes with the crocodile clips to supply the board with the necessary power.

The backplate also comes with 4 fixing holes on the edge, making it easy to mount any additional devices.

Technical Specifications

Operating voltage: DC3.0-3.3V
Dimensions: 89mm x 33mm x 12mm
Weight: 14.8g

Usage example

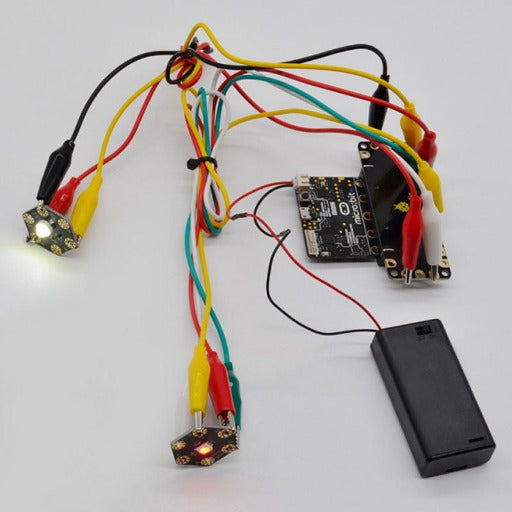

Insert the micro:bit mainboard firmly into the breakout board and connect some micro:bit modules using the Alligator clip lines to complete the circuit design.


As shown below. Imagine and try to build your own creative circuit designs.
