Breakout Board com Relé para Micro:bit
Breakout Board with Relay for Micro:bit
Load image into Gallery viewer, Breakout Board com Relé para Micro:bit
Load image into Gallery viewer, Breakout Board with Relay for Micro:bit

SKU: KS0293

Breakout Board with Relay for Micro:bit

€11,71
€11,71
Sale Sold out
/
Tax included. Shipping calculated at checkout.
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

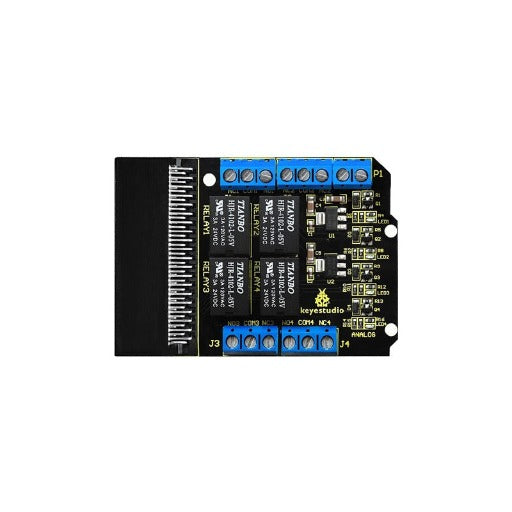

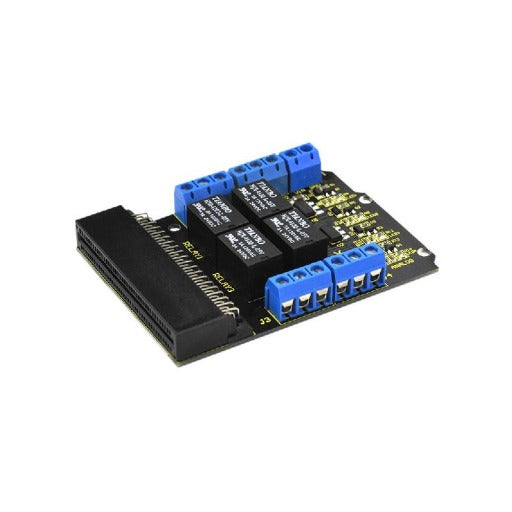

Breakout Board with Relay for Micro:bit integrates a 4-way 5V relay module, fully compatible with the micro-bit development board.

Its control terminals are respectively connected to P4, P3, P7 and P6 of the micro bit development board. You only need to control the high or low output level of P4, P3, P7 and P6. Therefore, control the relay on/off.

Micro:bit is an entry-level development board designed by the BBC for programming study. It supports the PXT graphical programming interface developed by Microsoft. It can be used on Windows, MacOS, IOS, Android and many other operating systems.

Features

Input voltage: DC 5V
Working method: high level of staff
Contact Capacity: AC120V/3A DC24V/3A

Schedule

Result

Insert the micro:bit development board into the keyestudio relay breakout board; send the code to the micro:bit main board and power on, you can see that the 4-way relay is connected and then disconnected one by one.

You can connect additional circuit to realize your design projects.
Note that here we use a power transfer module to provide 5V input voltage.
Finally, the LEDs on the 4-way relay breakout board are connected and disconnected one by one, and the external LEDs turn on and off one by one, in a circular fashion.
